Tungsten carbide supplier of High-Speed Wire Carbide Carbide Roll Ring for steel-making

Home

Tungsten carbide supplier of High-Speed Wire Carbide Carbide Roll Ring for steel-making

Materials: Tungsten carbide

Grade: YGR30, YGR45,YGH 45

Size: Dia 70-150 mm

Support Customized

Email：

info@cdcarbide.com

Feedback

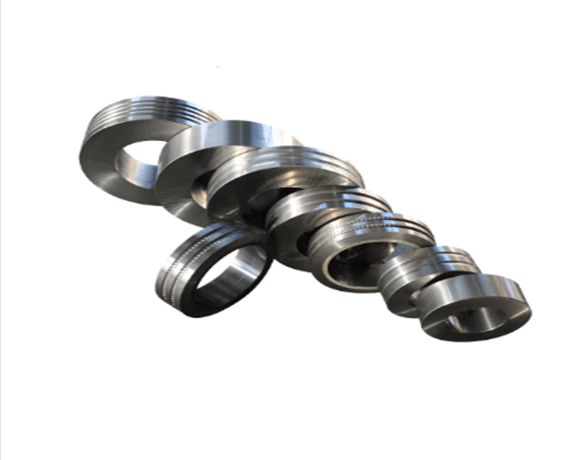

Tungsten carbide supplier of High-Speed Wire Carbide Carbide Roll Ring for steel-making

Tungsten carbide supplier of High-Speed Wire Carbide Carbide Roll Ring for steel-making

1. Product Description:

High-Speed Wire Special Carbide Roll Ring, Is Composed Of WC, Co, Ni, Cr And Other Elements, The Hardness Range Covering 78-90 HRA, Can Meet Φ 5- Φ25mm Different Specifications Of High-Speed Wire, The Highest Rolling Speed Of 140m / S Rolling Requirements.

2. Why choose Tungsten carbide materials?

good toughness, corrosion resistance, wear resistance and thermal crack resistance

3. Our Sizes:

No.	Outer diameter (mm)	Inner diameter (mm)	Height (mm)
1	70	60	12
2	80	70	12
3	90	82	12
4	90	85	8
5	95	90	5.5
6	100	90	12
7	110	100	12
8	120	110	12
9	130	120	12
10	135	130	5.5
11	165	155	16
12	150	140	15
13	Other customized size is also available

3. Our Grades:

Grade	Physical and mechanical properties
	Density：g/cm³	Hardnes：HRA	flexural strength：Mpa
YGH25	14.0～14.3	84.0	≥2300
YGR30	13.98～14.18	83.0	≥2360
YGR45	13.4～13.9	80.5	≥2250

YGR60 it is used for hot rolled deformed steel bars and pre-finish rolled front 1 and 2

YGR55 It is used for pre-finishing stands and hot-rolled deformed steel bars.

YGR45 It is used for the front frame of finishing mill.

YGR40 It is used for the middle frame and rear frame of finishing mill.

YGR25 It is used for the penultimate 1-3 frames of the finishing mill.

YGH55 It is used for finishing mill stand and hot rolling thread.

YGH45 It is used for the first and second stands of finishing mill and the pre-finishing stands; It is also

applicable to rolling line stands with low rolling speed, poor equipment accuracy and unstable rolling process.

YGH40 It has the best versatility and is used for the front frame of finishing mill and the rear frame of general rolling mill.

YGH30 Moderate wear resistance and impact resistance, good versatility, used for the last 1-4 stands or all stands of the finishing mill.

YGH25 High wear resistance and moderate impact resistance, used for the rolling of the penultimate first and second stands of the finishing mill of the fine high speed wire mill.

FAQ:

Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.

Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is base of tungsten carbide .

Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.

Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
