K10 K20 Factory price Tungsten carbide cold rolls rollers HIP sintering
Email：
K10 K20 Factory price Tungsten carbide cold rolls rollers HIP sintering
YG15 Factory price Tungsten carbide cold rolls rollers HIP sintering

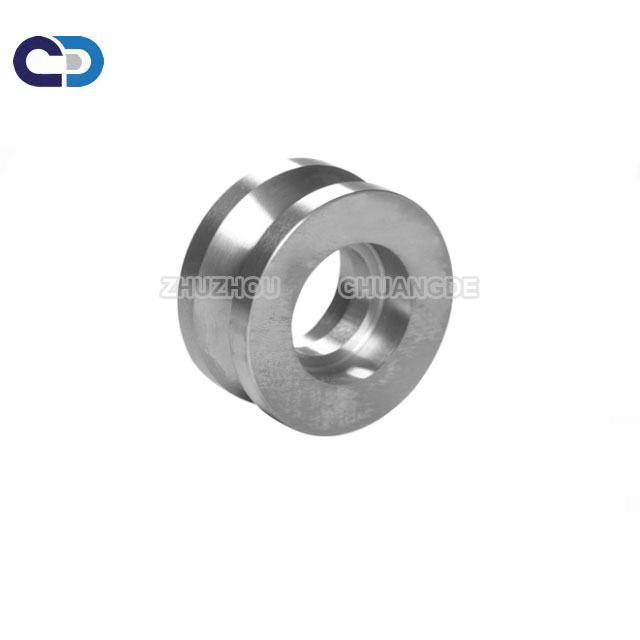

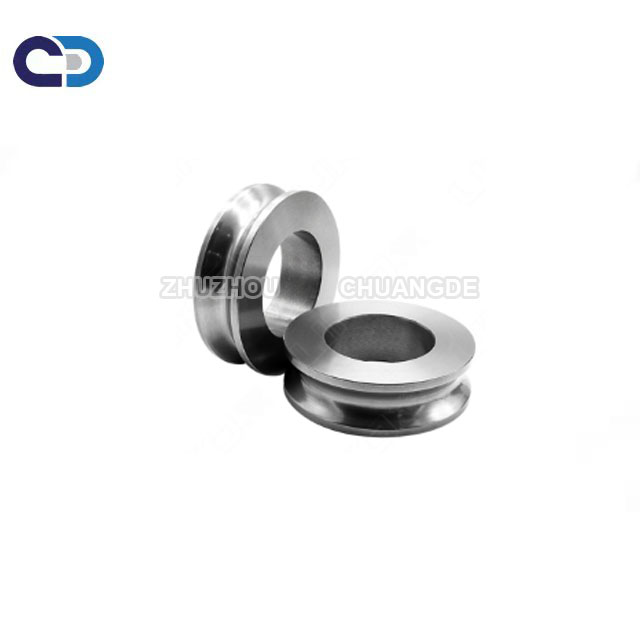

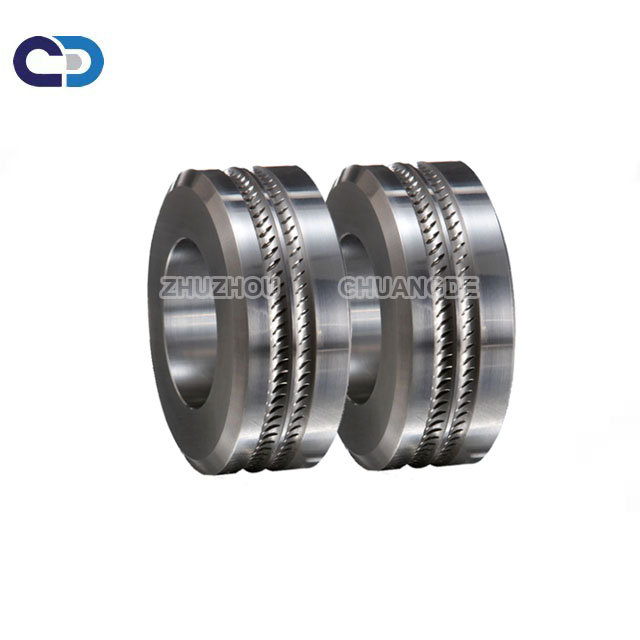

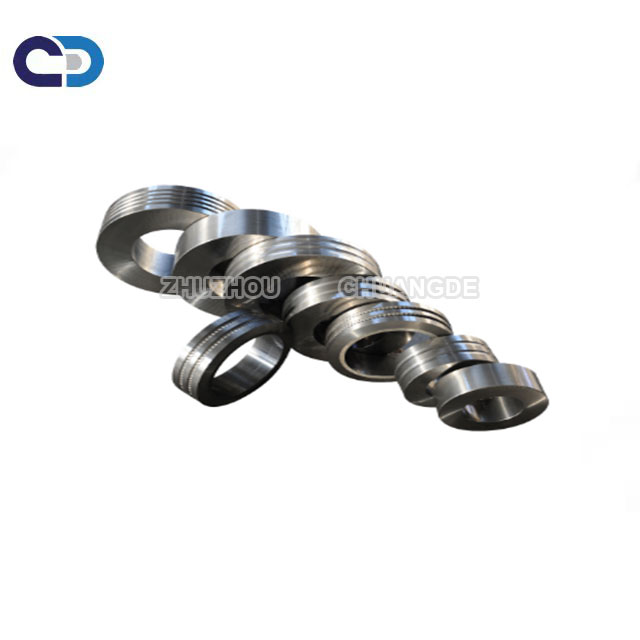

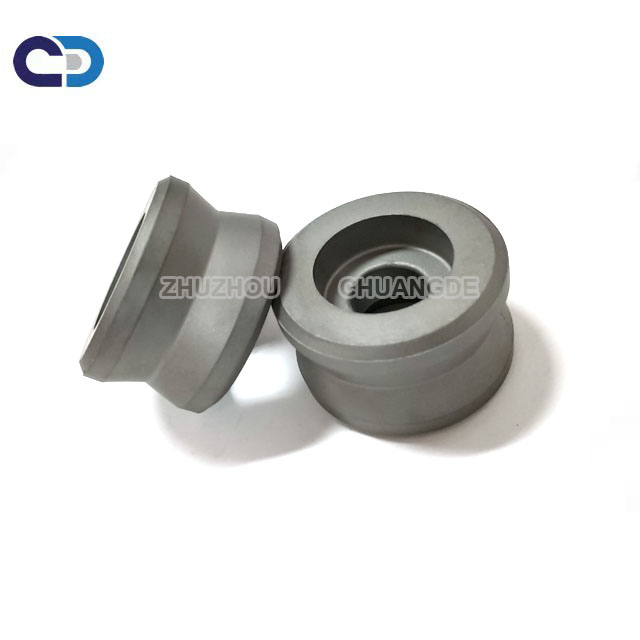

Introduction of Tungsten Carbide Roller
Tungsten carbide cold rolls is one of our main products , our cold rolls is used in reinforcement wire cold rolling and forming. The material of rolls blanks we used are sintered in HIP furnace, 100% virgin material.
Grade and Size
Grade | Binder(Wt%) | Density(g/cm3) | Hardness(HRA) | TRS(≥N/mm2) |
YG6 | 6 | 14.8 | 90 | 2400 |
YG6X | 6 | 14.9 | 91 | 2300 |
YG6A | 6 | 14.9 | 92 | 2000 |
YG8 | 8 | 14.7 | 89.5 | 2800 |
YG12 | 12 | 14.2 | 88 | 2900 |
YG15 | 15 | 14.0 | 87 | 3000 |
YG20 | 20 | 13.5 | 85.5 | 2850 |
| No. | Outer diameter (mm) | Inner diameter (mm) | Height (mm) |
| 1 | 70 | 60 | 12 |
| 2 | 80 | 70 | 12 |
| 3 | 90 | 82 | 12 |
| 4 | 90 | 85 | 8 |
| 5 | 95 | 90 | 5.5 |
| 6 | 100 | 90 | 12 |
| 7 | 110 | 100 | 12 |
| 8 | 120 | 110 | 12 |
| 9 | 130 | 120 | 12 |
| 10 | 135 | 130 | 5.5 |
| 11 | 165 | 155 | 16 |
| 12 | 150 | 140 | 15 |
| 13 | Other customized size is also available | ||
Advantage of tungsten carbider roll roller
1. High precision and good quality guaranteed.
2. Extremely good surface mirror finish and execellent product performance.
3. High hardness, round HRA 87 or even to HRA91.
4. Good wear resistance and corrosion resistance.
5. The lifetime of tungsten carbide is 50 times longer than convenmtional steel tools.

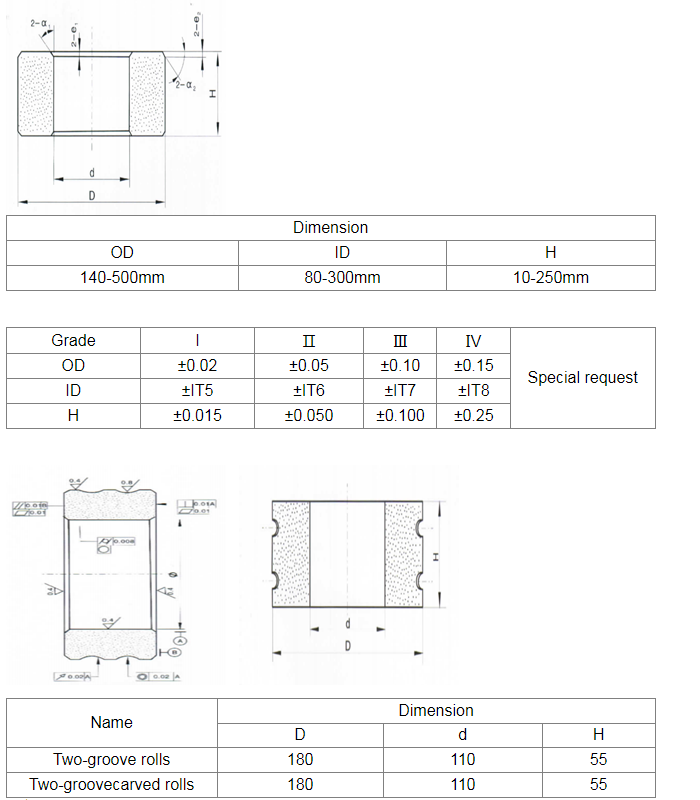

Drawing
All materials are tested in terms of hardness , density and T.R.S before using.
FAQ:
Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.
Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is base of tungsten carbide .
Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.
Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
