Product Description

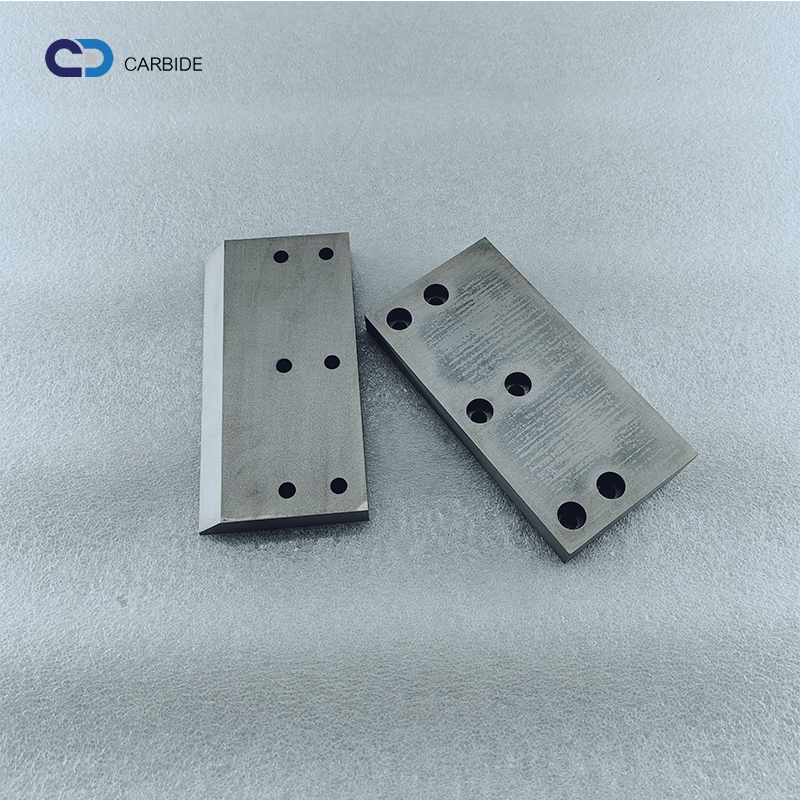

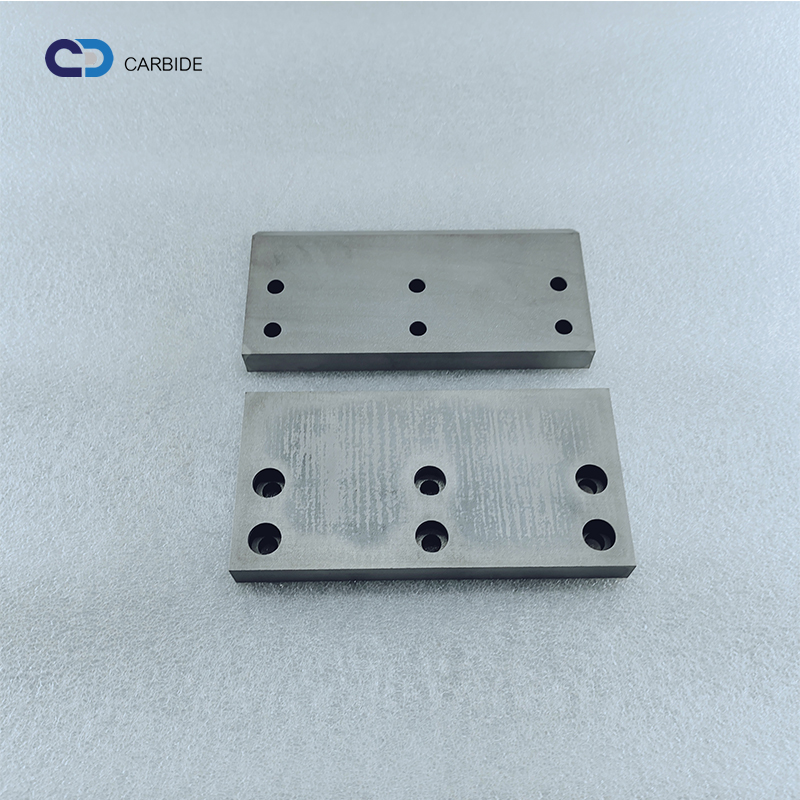

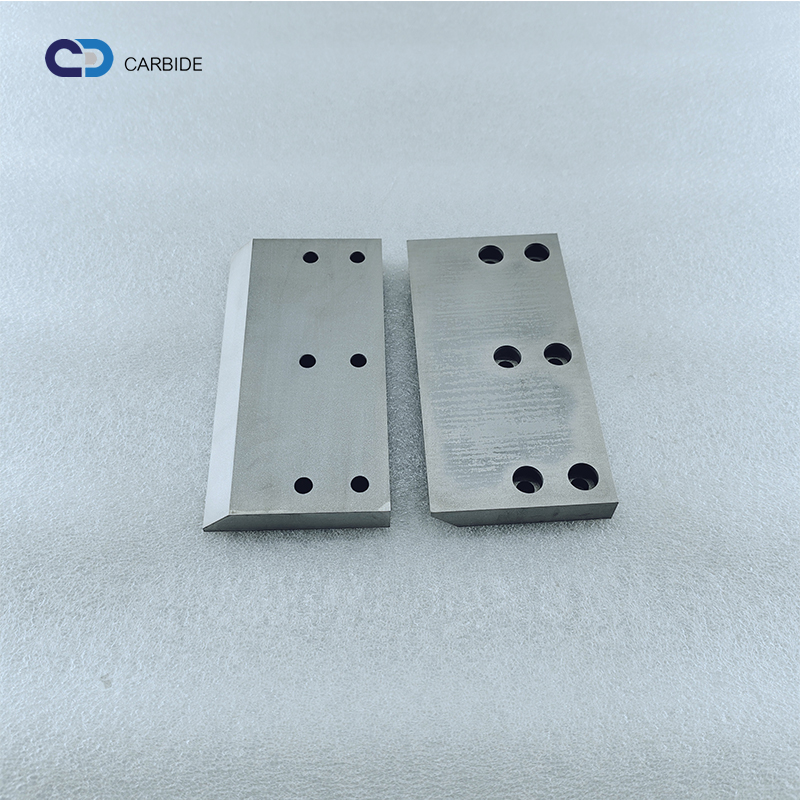

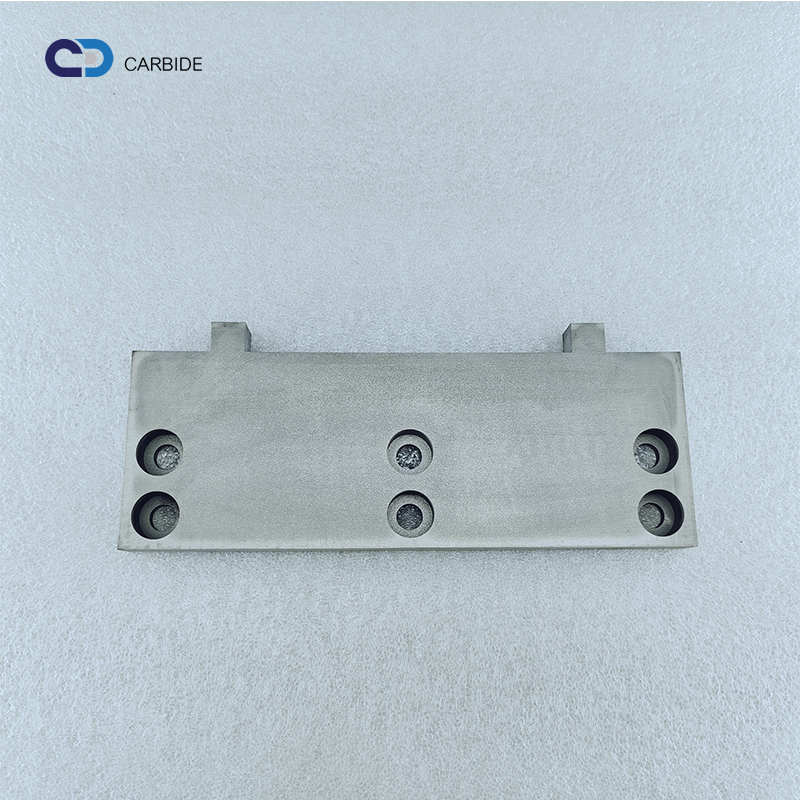

 Tungsten Carbide Plates YG11 YG15 YG18  Hip sintering  Features

1. 100% virgin tungsten carbide materials.

2. HIP Sintering and ground surface.

3. Composition: WC+Co, WC+TiC+TaC+Co.

4. ISO9001:2015 vertified professional manufacturer over 12 years.

5. OEM and ODM are accepted as well.

Tungsten carbide strip/plate can be used in many field such as woodworking, machining of refractory alloys, stainless steel, high manganese steel, for processing cast iron, non-ferrous metal and aluminum section bar,etc

1. To make punching dies: It can be applied to the production of high-speed die and multi-station progressive die for punching copper, aluminum, stainless steel, cold-rolled sheet, hardware, standard parts, upper and lower punches, etc.

2. To make wear-resistant tools.

3. To make high temperature resistant parts, wear parts and anti-shielding parts. such as the guide rail of the machine tool and the anti-theft reinforcement board of the ATM.

4. To make corrosion-resistant parts for the chemical industry.

5. To used as radiation and corrosion resistant materials for medical equipment.

6.To do cutting tools  in mold industry.

Carbide plate is a highly efficient and green material, which features qualities of stainless steel: Corrosion resistance,oxidation resistance, wear resistance, bonding proof and acid-base resistance; And ensures its good strength, toughness, bending and stretching, impact resistance.

Grade of Wear parts hard alloy widia cemented tungsten carbide board block bar plates

Application of  G20 G30 YG15 Tungsten carbide plates with sharp edge for cutting tools

1.Applied on heat-resistant parts, wear-resistance parts, anti-shielding parts, anti-corrosion parts.

2.For making progressive press tools and progressive dies of high velocity ram machine.

3.For making connectors in electron industry, IC industry and semiconductor.

4.Used for armature, stator, LED lead frame, EI silicon steel sheet and punching mould for hardware and standard parts.

Dimension (mm) and shape

Length (100-500mm) *Width (100-500mm)*Thickness(1-20mm) , we will produce blanks (HIP sintering )

Tolerance : blank (L:+-1 , W:+-0.5, T :+-0.1/+/0.5 ) ,Ground :L/W/T : +/0.01, Ra 0.1

This shape is nonstandard ,we can produce according to your drawings .

All materials are tested in terms of hardness , density and T.R.S before using.

FAQ:

Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.

Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is  base of  tungsten carbide .

Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.

Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
