Tungsten Carbide Plates bar block sheet wear resistance parts

Grade: K10, k20, k30

Density(g/cm3):14.8,14.9,14.5

Hardness(HRA):90.5-91.5, 89.5-90.5, 91.5-92.0

Intensity(N/MM2):2700,3000,3200

Email：

[email protected]

Feedback

Tungsten Carbide Plates bar block sheet wear resistance parts

Product Description

Tungsten Carbide Plates YG11 YG15 YG18 Hip sintering Features

1. 100% virgin tungsten carbide materials.

2. HIP Sintering and ground surface.

3. Composition: WC+Co, WC+TiC+TaC+Co.

4. ISO9001:2015 vertified professional manufacturer over 12 years.

5. OEM and ODM are accepted as well.

Tungsten carbide plates that are especially suitable for protecting surfaces against abrasive and erosive wear. The plates are made of tungsten carbide and can be adjusted with different chemical compositions to the requirements of each specific application

1. To make punching dies: It can be applied to the production of high-speed die and multi-station progressive die for punching copper, aluminum, stainless steel, cold-rolled sheet, hardware, standard parts, upper and lower punches, etc.

2. To make wear-resistant tools.

3. To make high temperature resistant parts, wear parts and anti-shielding parts. such as the guide rail of the machine tool and the anti-theft reinforcement board of the ATM.

4. To make corrosion-resistant parts for the chemical industry.

5. To used as radiation and corrosion resistant materials for medical equipment.

Grade of Wear parts hard alloy widia cemented tungsten carbide board block bar plates

Grade				Properties & Applications	Approx Grades in China
	Density	T.R.S	Hardness
	g/cm3	MPα	HRA
CD6A	14.9	2000	92.5	Fine grain alloy, good wear resistance. It is suitable for manufacturing forming cutter, wear-resistant parts etc.	YG6A
CD8	14.7	2800	89.8	High bending strength, wear resistance lower than YM6A, suitable for manufacturing forming cutter, wear-resistant parts etc.	YG8
CD11	14.4	2900	88.5	High bending strength, wear resistance lower than YM6A, suitable for manufacturing forming cutter, wear-resistant parts etc.	YG11
CD15	14	3000	87	Suitable for manufacturing punching dies, wear-resistant parts.	YG15
CD20	13.5	2800	85.5	High bending strength, suitable for manufacturing progressive dies and other punching dies.	YG20
CD13X	14.2	3200	90.0	High bending strength, suitable for manufacturing progressive dies and other punching dies.	YG13X
CD2T	14.25	2500	92.0	Fine grain alloy, with high wear resistance, bending strength, bonding resistance and thermal strength. It is suitable for machining refractory alloys, stainless steel, high manganese steel, etc.	YS2T

Application of Wear parts hard alloy widia cemented tungsten carbide board block bar plates

1.Applied on heat-resistant parts, wear-resistance parts, anti-shielding parts, anti-corrosion parts.

2.For making progressive press tools and progressive dies of high velocity ram machine.

3.For making connectors in electron industry, IC industry and semiconductor.

4.Used for armature, stator, LED lead frame, EI silicon steel sheet and punching mould for hardware and standard parts.

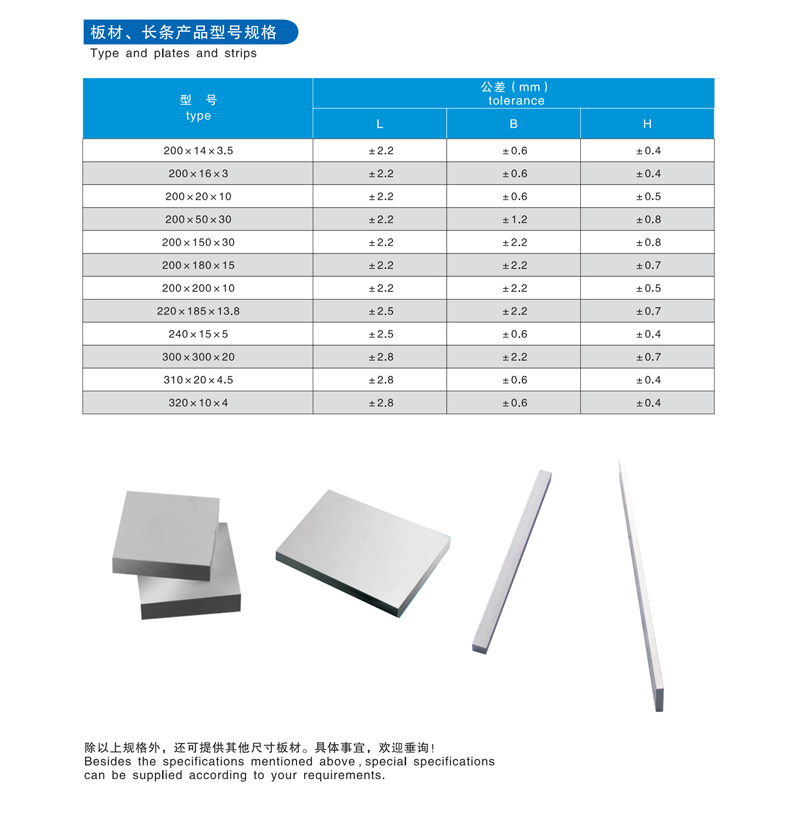

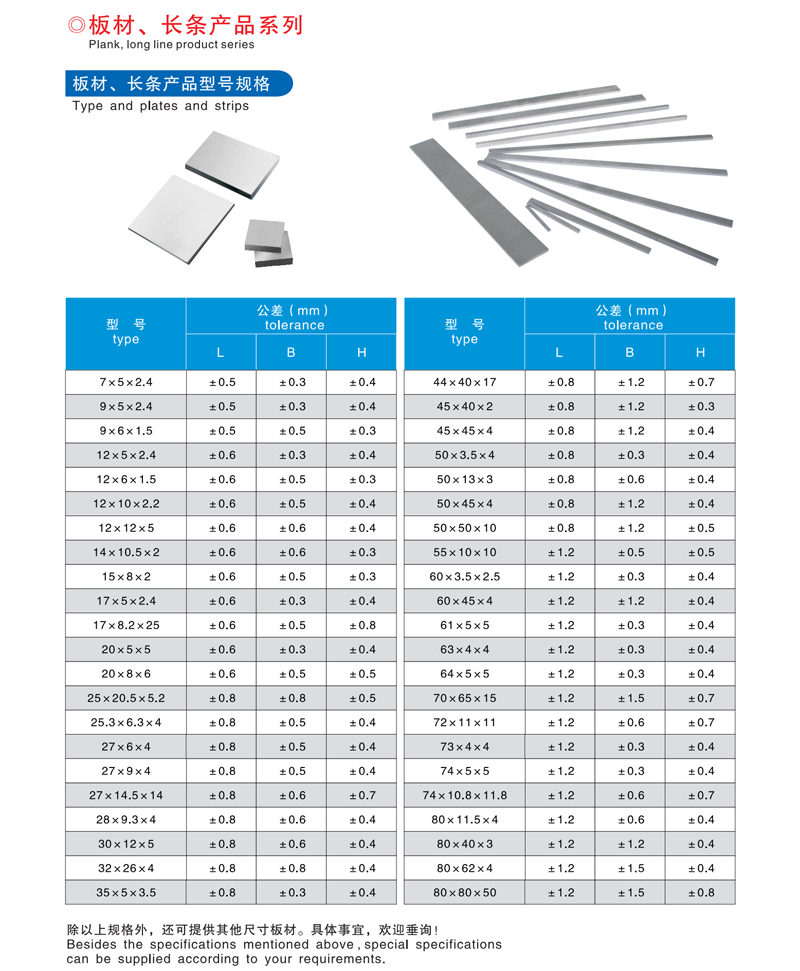

Dimension (mm) and shape

Length (100-500mm) *Width (100-500mm)*Thickness(1-20mm) , we will produce blanks (HIP sintering )

Tolerance : blank (L:+-1 , W:+-0.5, T :+-0.1/+/0.5 ) ,Ground :L/W/T : +/0.01, Ra 0.1

All materials are tested in terms of hardness , density and T.R.S before using.

FAQ:

Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.

Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is base of tungsten carbide .

Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.

Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
