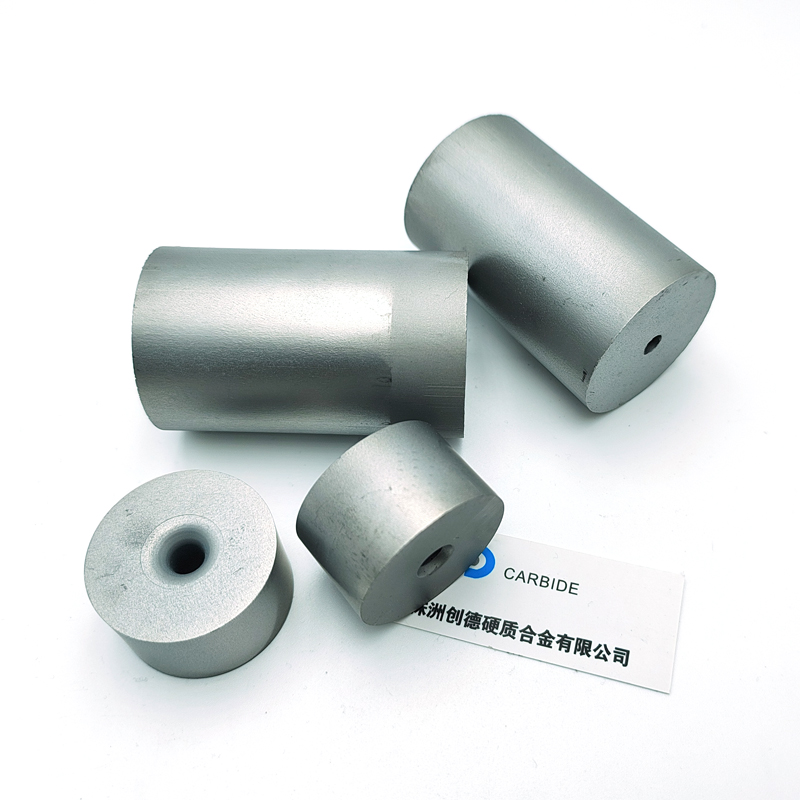

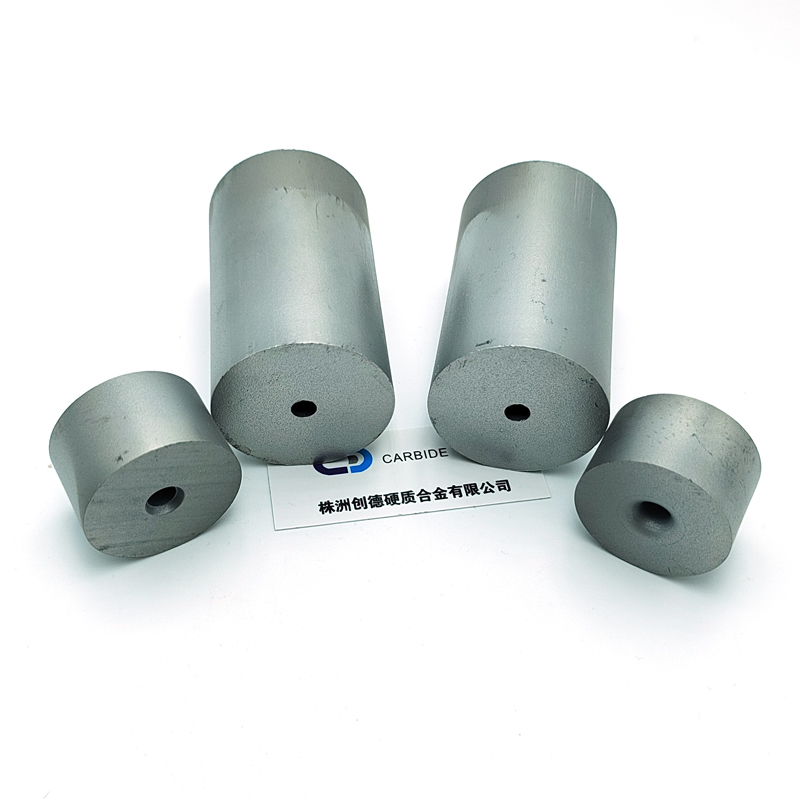

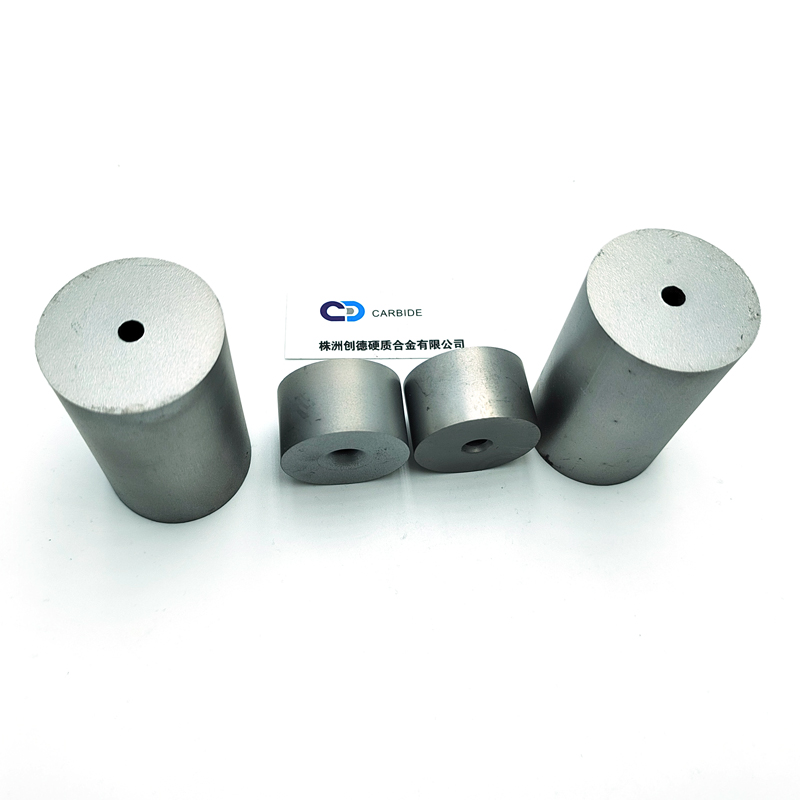

Manufacturers Customized Hot Forging Tungsten Carbide Cold Heading Stamping Dies for screws
Description
Surface: Grinding, Polishing, Sand-blasted
Application: for making bolt and nuts
Features: Good wear resistance, impact resistance, High bending strength
Grade: YG15, YG20, YG20C, YG22C, YG25C, GT55, ML40, ML100, ST7, VA90, C5
Performance: TRS > 3000 N/mm3, Hardness: 85-92HRA
Advantage
1.100% raw material for production.
2.Hip sintered, reliable hardness, durable wear resistance
3.Various sizes, carbide grade and full types available
4. Competitive price with on-time delivery
5.Customized product as per drawing and small order accepted,professional and in-time technical support
Applications :
Tungsten carbide pellets dies are widely used in cold heading,forging,stamping and punching dies for maufacturing nuts, screw caps, bolts, cans and many other products.

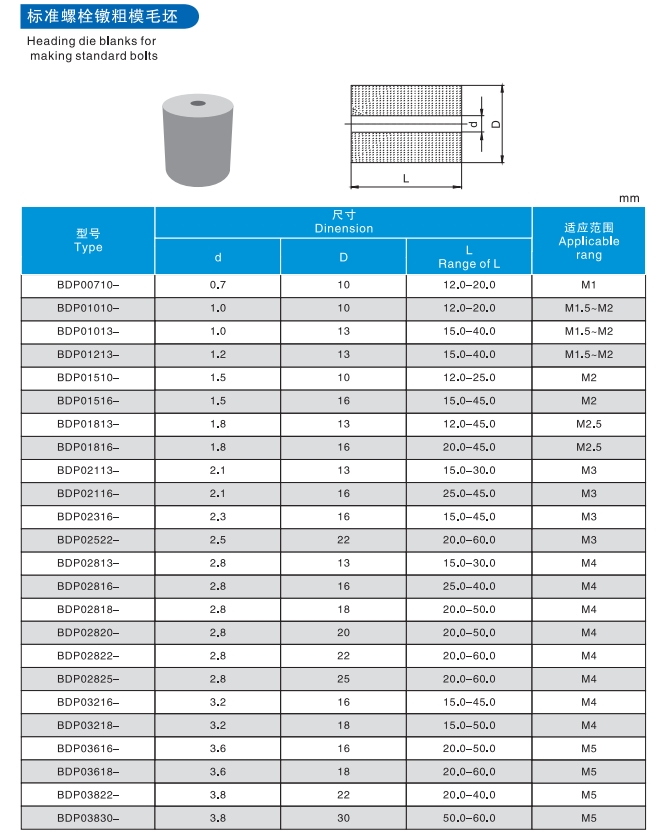

Commonly used tungsten carbide heading dies
Carbide punching and impacting dies | |||||
Grade | Performance | Performance&application recommended | |||
Density | Hardness | Bend Strength | |||
G/Cm3 | HRA | N/mm2 | |||
YG11 | 14.4 | 88.5 | 2600 | Forming or stamping dies for metal powders and nonmental powders. | |
YG15 | 14 | 87.5 | 2800 | For fabricating drawing dies of steel tubesand rods under high | |
compressibility ratio;punching,stamping,forging tools under large stress. | |||||
YG20 | 13.5 | 85.5 | 3200 | For fabricating of stamping dies for watch parts, spring plates of musical | |
instruments, battery jars,small sized steel balls,screws,screw caps. | |||||
YG16C | 13.9 | 85.5 | 2900 | Impact resistance, hot&forging dies etc. | |
YG18C | 13.7 | 84.5 | 3100 | Impact resistance forging dies,hot-press forging dies and rollers. | |
YG20C | 13.5 | 83.5 | 3300 | Dies for wear resistant or impact resistant application. | |
YG22C | 13.3 | 83 | 3500 | Nut forming dies and high impact resistance forging dies. | |
YG25C | 13.1 | 82.5 | 3600 | Stainless bolt header dies and rollers. |
Features
1) Extension of die life and stability of life
By controlling the particle size distribution of WC, can make the plastic deformation and reduce the load of thecemented carbide to improve the compressive strength and fracture toughness, delaying the occurrence and propagation of cracks of the mould process, long service life, and has a very high consistency.
2)Bite and adhesion decreased considerably
High temperature single crystal WC was used to strengthen the binding of crystalline structure and effectively strengthen the cobalt phase, thus effectively inhibiting the cracking of the material.
3)The corrosion resistance and electrical resistance of the cemented carbide are improved
Because of the strengthening of the cobalt phase, the corrosion resistance of the cemented carbide is greatly improved, so that the cemented carbide is suitable for discharge machining.
FAQ:
Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.
Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is base of tungsten carbide .
Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.
Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
