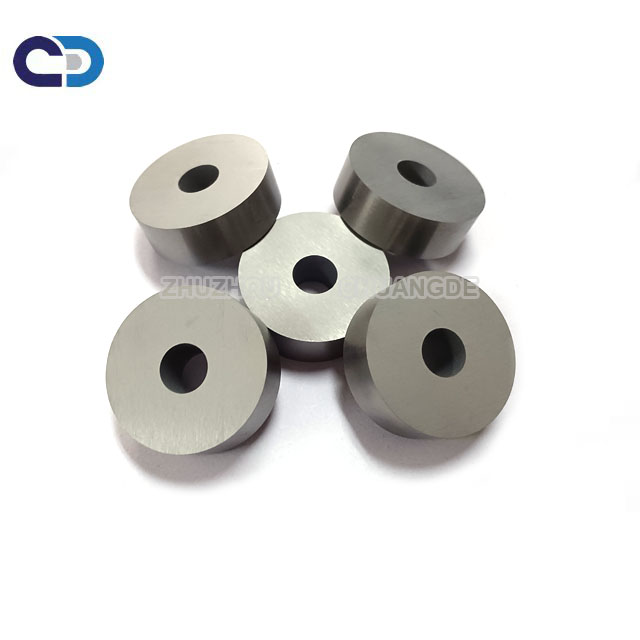

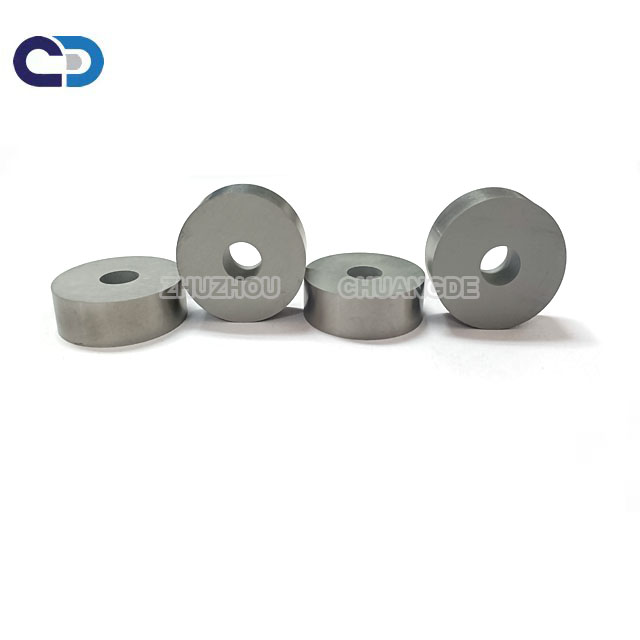

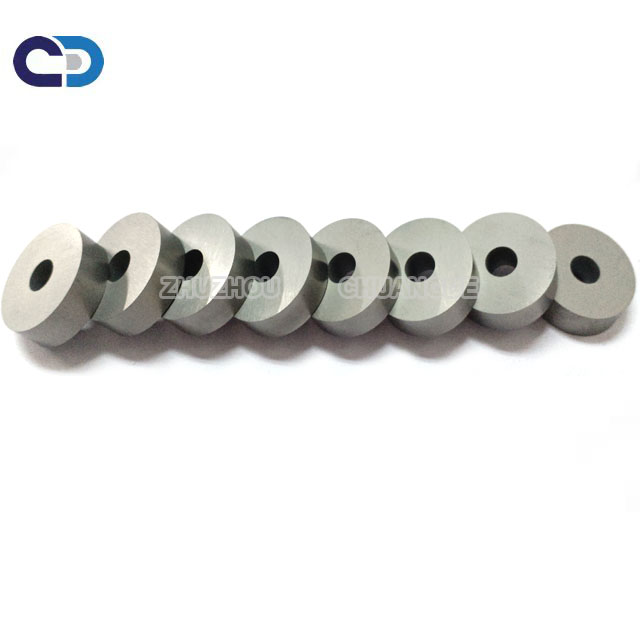

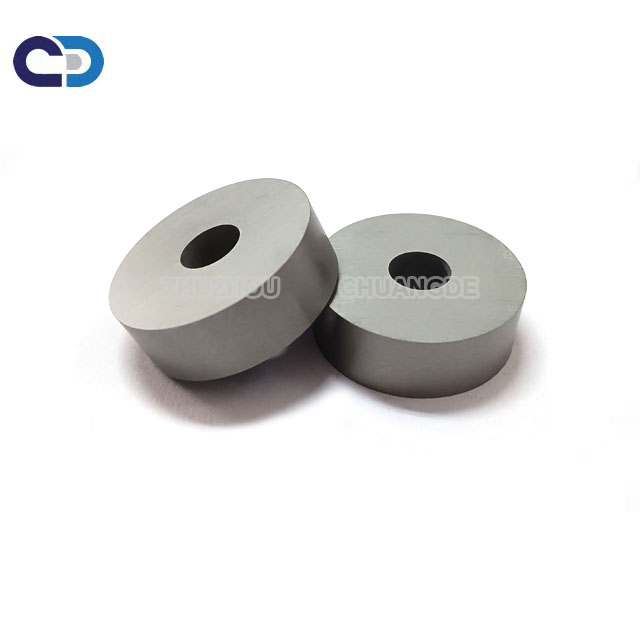

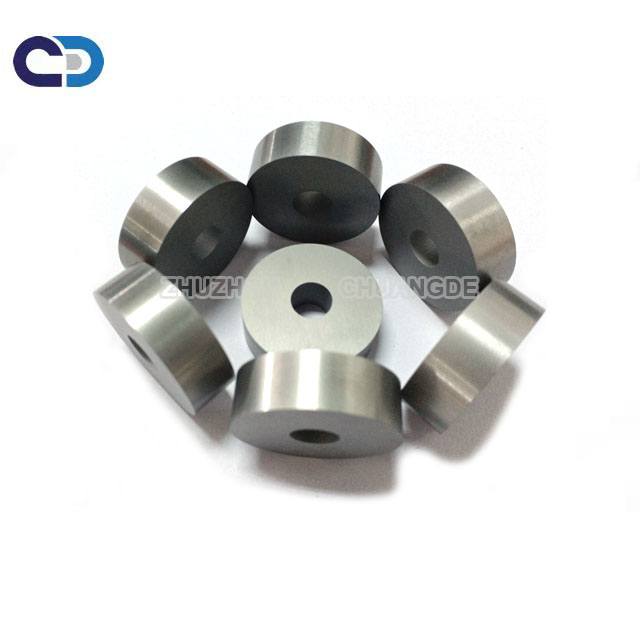

Tungsten carbide mold punch stamping cold heading die bushing mould

Material:100%virgin raw material

Grade :YG11/YG12/YG15/YG20C/YG22C/YG25

Long lifetime wear parts

Application: punch,stamping,forging,cold heading die

Email：

info@cdcarbide.com

Feedback

Tungsten carbide mold punch stamping cold heading die bushing mould

Description

Item
Tungsten carbide die
Grade
YG6, YG8, YG11, YG12, YG15, YG20, YG20C, YG22C, YG25C, G5,G20,G30,G40,G50
Sizes
standard or customized.
Brand
CD
Country of Origin
Zhuzhou, China
Usage
die casting mould, punch dies, wire drawing die, machine mold, progressive die, extrusion die, press mold, mould parts, trimming die, cold heading die, forging mold, cold forming die etc.

Application

1.Tungsten carbide die blanks are used for finishing casting mould, punch dies, wire drawing die, machine mold, progressive die, extrusion die, press mold, mould parts, trimming die, cold heading die, forging mold, cold forming die etc.

2. Zhuzhou Chuangde has the most stock of available moulds for various sizes of carbide dies which saving a lot cost for our customers.

3. Zhuzhou Chuangde has the most wide and stable grades for carbide dies and has highest cost performance comparing to Kennametal, Cbcarbide.

4.We have grade similar to G5/G20,GT55 or G20,G30,G40,G50

Grade

Grade	Density g/cm3	Hardness HRA	T.R.S Mpa	Performance&application recommended
YG11	14.4	88.5	2420	Forming or stamping dies for metal powders and nonmetal powders
YG15	14	87	3000	It is suitable for drawing steel tubes and rods under high compression ratio,manufacturing upsetting,punching and stamping tools under large stress
YG20	13.5	85.5	2800	It is suitable for manufacturing punching dies for watch parts,leaf spring of musical instrument,battery jars,small sized steel balls,screws,screw caps,etc
YG16C	13.9	85	2750	It is suitable for impact-resistant forging dies
YG18C	13.7	84	2800	It is suitable for impact-resistant forging dies,hot-forging dies and finishing rollers
YG20C	13.5	83	2850	It is suitable for wear resistant or impact resistant dies
YG22C	13.3	82	2900	It is suitable for nut forming dies and high impact-resistant dies
YG25C	13.1	81.5	3000	It is suitable for stainless screw dies and semifinishing rollers
Other grades and sizes can be offered as per customers' requirement

Dimension (mm)

From Outside diameter φ10-φ200 ,inner diameter φ1-φ90,Length can be adjusted according to your requirements .

We have most rich stocks of mold for all kinds of dies .It will save your mold cost and get better profit .

Tolerance :blanks are OD :+/-1 or +/-0.5, ID :-1 ,Length : +/-1,or +/-0.5 or according to your requirements.

Ground tolerance : OD +/-0.01. ID:+/-0.03, Length :+/-0.01 ,Concentricity can reach 0.02/0.03

All materials are tested in terms of hardness , density and T.R.S before using.

FAQ:

Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.

Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is base of tungsten carbide .

Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.

Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
