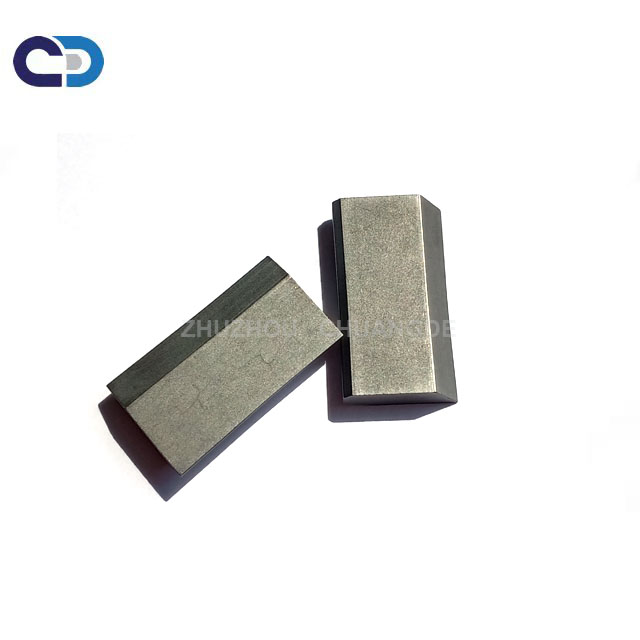

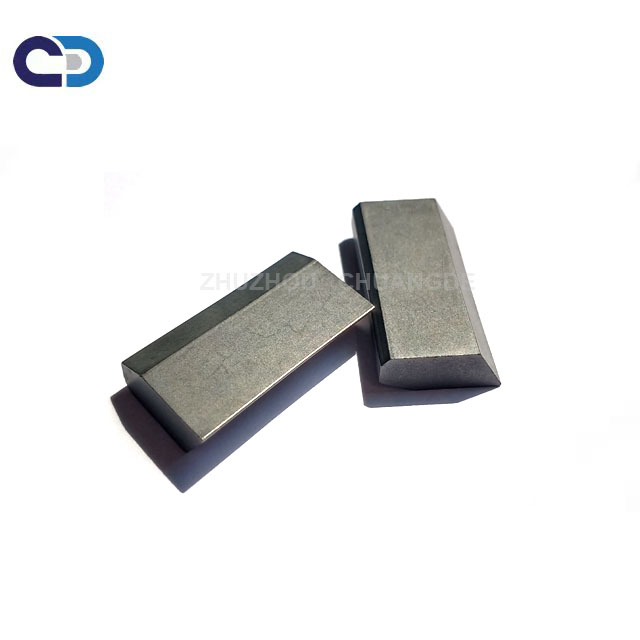

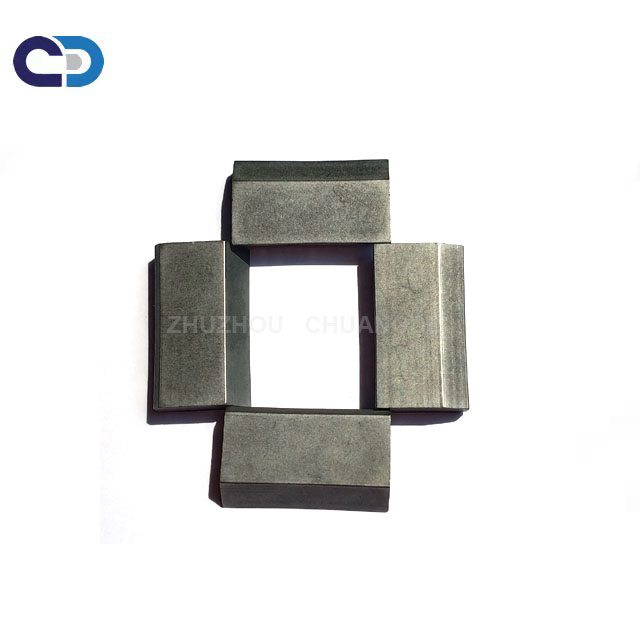

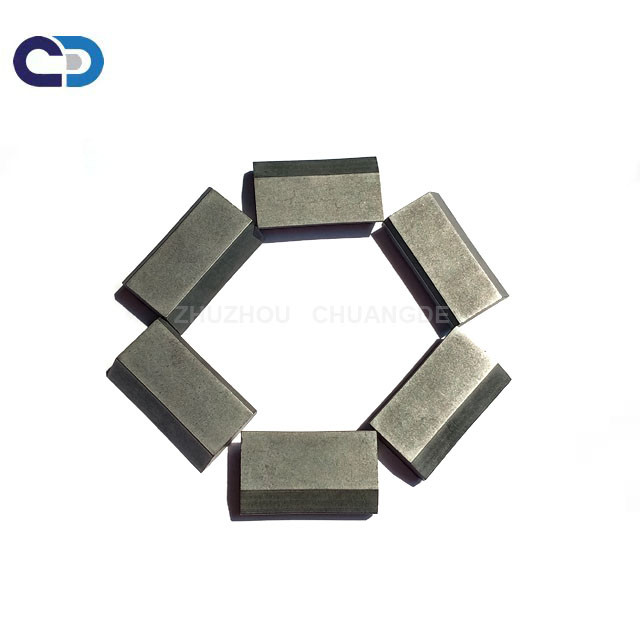

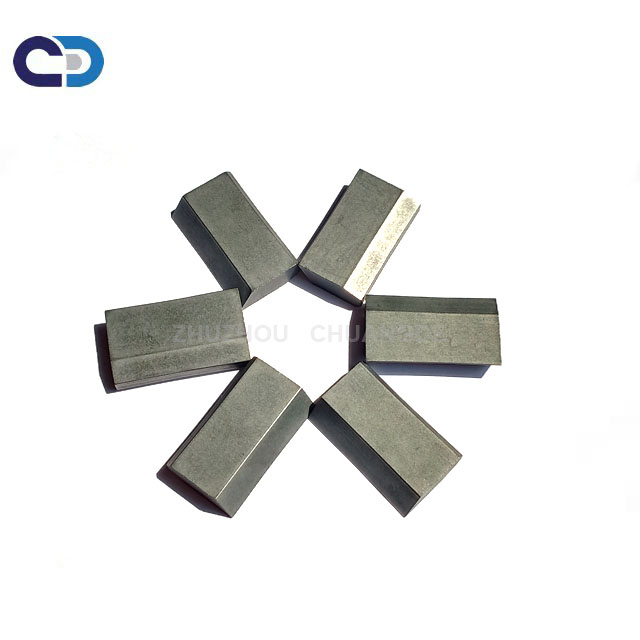

Tungsten Carbide Hard Metal Alloy Saw Tips For Cutting Wood saw blade

Home

Tungsten Carbide Hard Metal Alloy Saw Tips For Cutting Wood saw blade

Material:100% virgin raw material

Size:14.5*5*25.5mm

Grade:YG6X

Application:For wood cutting

Email：

info@cdcarbide.com

Feedback

Tungsten Carbide Hard Metal Alloy Saw Tips For Cutting Wood saw blade

Characteristic

Tungsten Carbide Saw tips has the characteristics of high strength and wear resistance and corrosion resistance. The saw tips is sintered and ground by HIP sintering furnace to form a product with a smooth surface and no burrs.

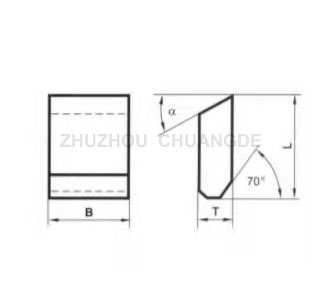

Dimension

14.5*5*25.5mm

Grade and Application

Grade	ISO	Density g/cm3	Hardness HRA	T.R.S N/mm2	Application
CD3A	K01	15.1	94.0	≥ 1700	Shaving board, laminated board and HDF etc.
CD3X	K05	15.2	92.0	≥ 1800	Shaving board, laminated board and HDF etc.
CD6A	K10	14.85	92.5	2200	Hardwood, MDF, HDF, copper and aluminum.
CD6X	K10	14.9	91.5	2300	Ordinary wood, PVC, copper and aluminum.
CD8X	K20	14.65	91.5	2900	Carbon steel, copper and aluminum.
CD10X	K30	14.45	90.5	3000	Cork and building templates
CD10T	K30	14.4	91.8	3400	All kinds of wood, copper, aluminum and other non-ferrous metals, highly optimized for general use.
CD2T	K30	14.3	92.2	2500	Stainless steel, color steel plate, etc.
CD6	K10	14.9	90.5	2400	Hard wood, original wood, aluminum section bar, brass rod and cast iron.
CD8	K20	14.7	89.8	2800	Dry wood, soft wood, aluminum and brass, graphite and grass.
CD8C	K20	14.7	88.5	2600	Soft and dry wood, general wood with loose knot, man-made marble. Ceramics and grass.
CD9C	K20- K30	14.6	88.0	2700	For debarking and cutting of frozen wood, soft wood and original wood.
CD11C	K30- K40	14.4	87.0	2700	Hard wood, non-ferrous metal, granite and marble.
CD15C	K40	14.0	86.0	3100	For debarking and cutting of frozen wood, soft wood and original wood.
CD501	P30	12.5	92.5	≥2000	Steel tile, steel angle, sheet iron.
CD503	P30	12.3	92.0	≥ 1900	Steel tile, steel angle, sheet iron.

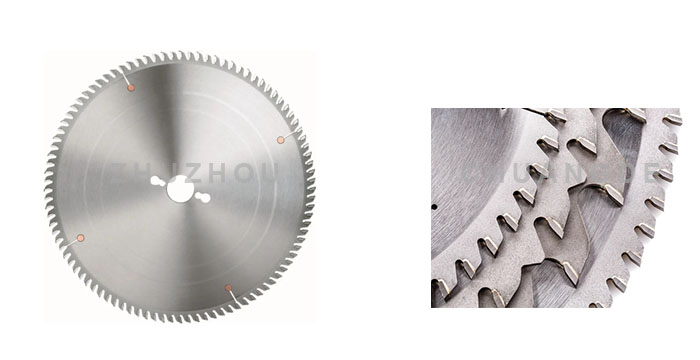

Application of this kind of saw blade

Cemented carbide saw tips by using brazing method and weld well in carbide saw blade ,it can be used for cutting all kinds of wood,metal and so on .

Tungsten Carbide Hard Metal Alloy Saw Tips For Cutting Wood saw blade

All materials are tested in terms of hardness , density and T.R.S before using.
