YG15 High quality rotary tungsten carbide slitter paper cutting bottom knife

Home

YG15 High quality rotary tungsten carbide slitter paper cutting bottom knife

Material:100%virgin raw material

Grade : YG15

Application : cutting paper or metal

Dimension : as your drawing

Email：

info@cdcarbide.com

Feedback

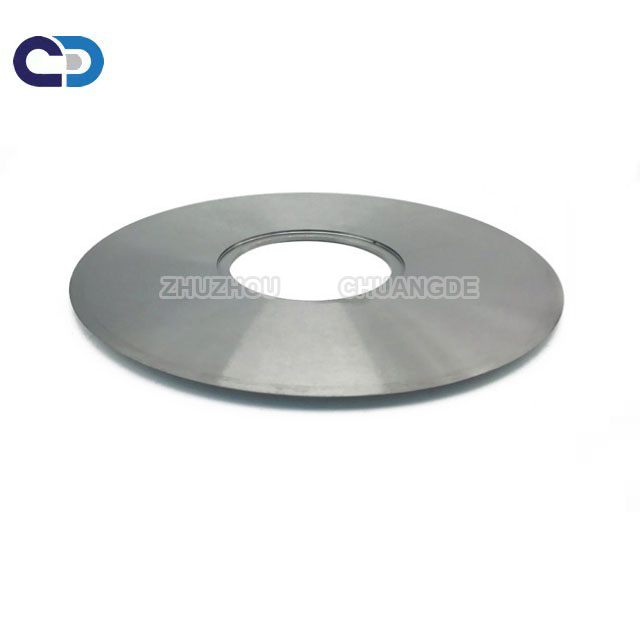

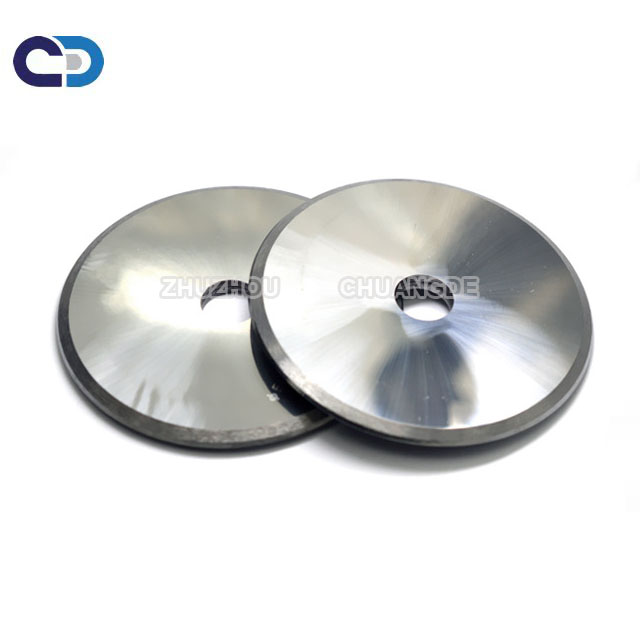

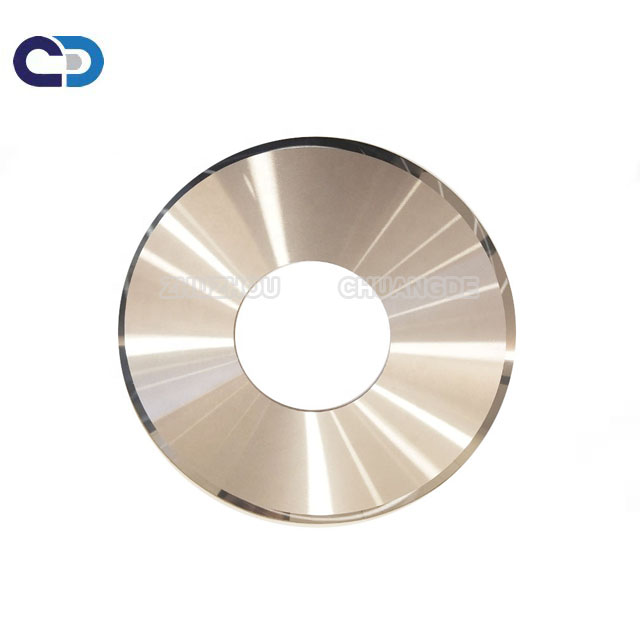

YG15 High quality rotary tungsten carbide slitter paper cutting bottom knife

Our blades are used for corrugated carton slitter scorer machine,cardboard slotting machine,carton printing machine etc.They can be made by tungsten carbide with long life working time.We have all standard size and also can customized as customers' requirements.
In addition,we can provide the grinding wheel for the blade,slotting blade and others blade used for carton ,tobacco machinery

Materials	Tungsten Carbide CD020, CD030, OEM
Thickness	0.2-6mm or customized
Flatness	0.003mm
Type of edge	single edge, double edge
HRA	85-93
Straightness	<0.1
Surface roughness	Ra0.2
Laser engraving	Done as requirement
Package	10pcs/set,Simple packing/Plastic box packing/Blister packing
Main Size	OD(mm)	ID(mm)	Thickness(mm)	Cutting Edge
	300	112	1.4	double
	280	168	1.4	double
	265	112	1.3	double
	260	168	1.4	double
	260	140	1.4	double
	240	132	1.2	double
	230	110	1.3	double
	200	122	1.2	double
	140	46	1.2	single
	100	16	0.3	single
	85	16	0.25	single
	60	19	0.27	single
Size	Can be customized according to customer requirements
Advantages	1, High quality raw materials.
	2. Durable & Long service life.
	3. High precision.
	4. Nice and solid packaging.
	5. Excellent weather resistance and waterproof.
Application	For paperboard/paper/cardboard/carton/Tobacco machine to cut.

High quality rotary tungsten carbide slitter paper cutting bottom knife

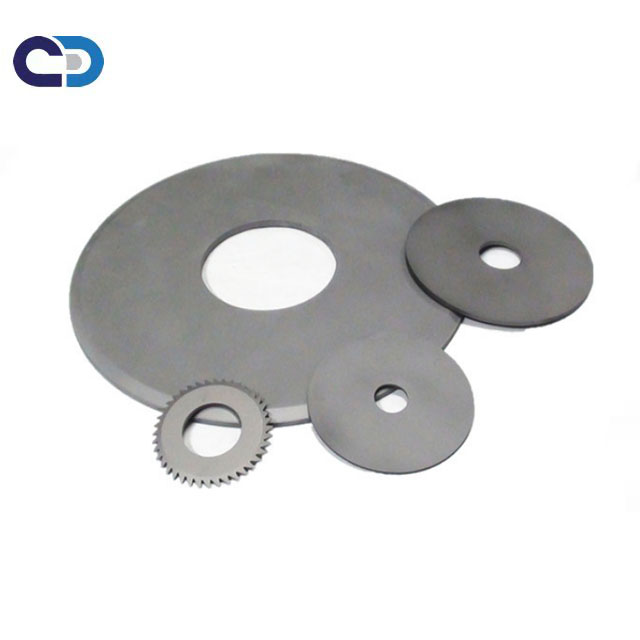

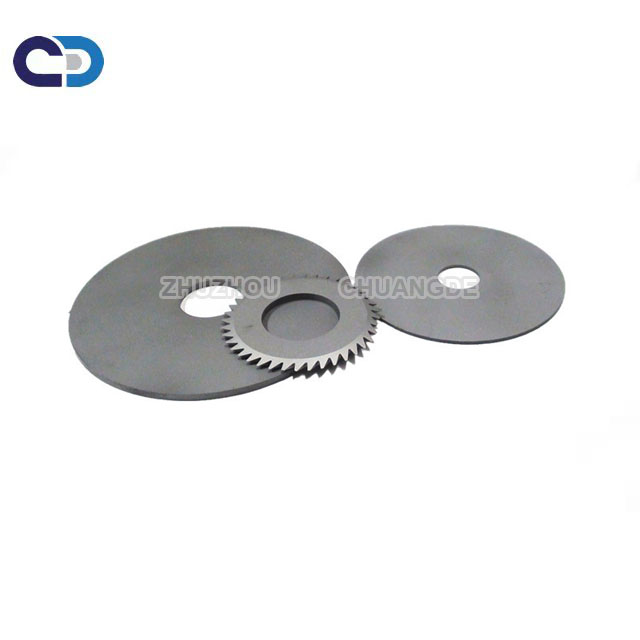

Application of Warranty Tungsten Carbide Disc Blanks/Slitting Knife Carbide Circular Cutter Blade

The carbide circular blades for Slitting Corrugated Board, carbide rotary blade for paper cutting ,rubbers cutting, carbide blade for battery industry, carbide blades for Tobacco Machines, carbide circuit board cutting knife, carbide blades for metal cutting, carbide knife for Rewinder machines, carbide blades for chemical fiber cutting, carbide blades for printing industry, carbide milling cutter for paper industry, and carbide blades for other special range.

tungsten carbide slitting slitter knife circular blade for corrugated paper cutting

Production Process of Warranty Tungsten Carbide Disc Blanks/Slitting Knife Carbide Circular Cutter Blade

To ensure the quality and the requirements of the drawings can be met before mass production
1st , Start to prepare the RTP powder as per customer’s requirement with our wet-grinding machine
2nd, Before mass production, do a trial pressing and sintering using mould,

3rd, Check the appearances and the sizes of the samples with micrometer, projectors etc.

Testing process of Warranty Tungsten Carbide Disc Blanks/Slitting Knife Carbide Circular Cutter Blade

1st,Mass production press the raw materials to shape blanks,

Notes: all carbide blades blanks must be passed by semi finished inspection
2nd,Sinter blanks to finish (HIP) and finished products inspection,

Notes:10 sets of vacuum sintering furnace and 2set of HIP in the factory ensure the best quality and production capacity.

3rd,Cleaning/tumbling to make the carbide blades clean and nice surface.

Packing and Delivery of Warranty Tungsten Carbide Disc Blanks/Slitting Knife Carbide Circular Cutter Blade

step 1, wrapped carbide blades in paper to avoid carbide blade be broken

step 2, put the carbide blade in inner small carton box

step 3, put the inner box into outer carton and fill the carton with foamed plastic

step 4, wrap the carton with packaging tape

All materials are tested in terms of hardness , density and T.R.S before using.

FAQ:

Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.

Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is base of tungsten carbide .

Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.

Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
