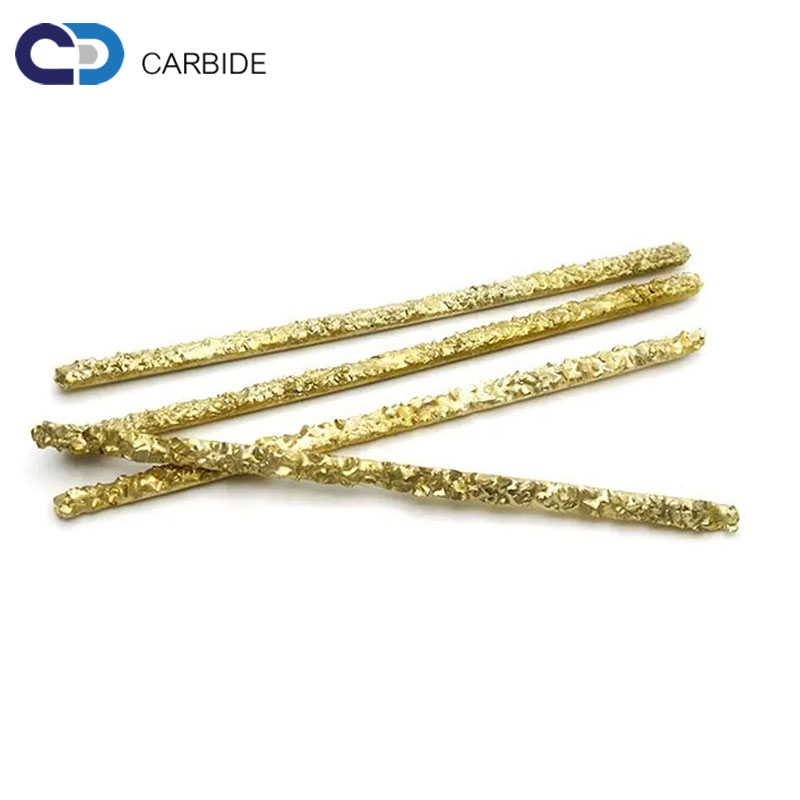

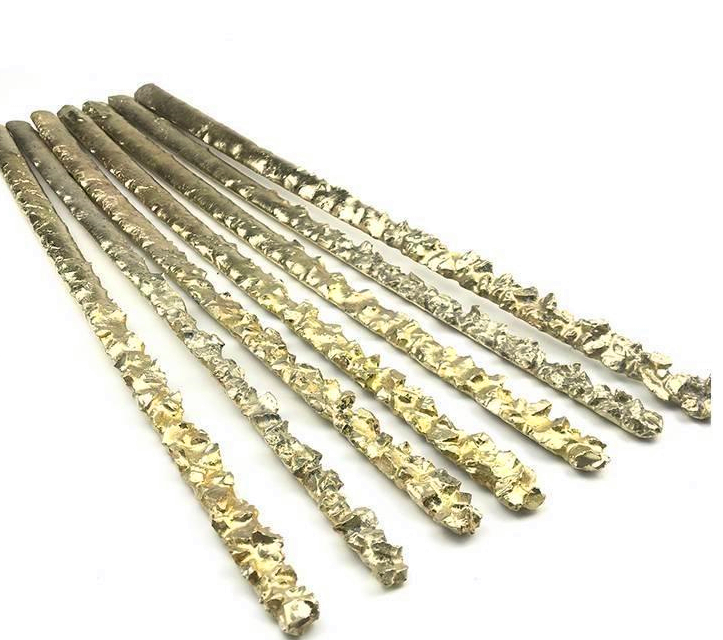

Tungsten carbide welding rod bar for hard facing/ driling use golden color

YG Series Cemented Carbide Surfacing Rod is made by mixing the granular cemented carbide particles as the hard phase and the copper alloy or nickel alloy as the bonding phase through high-temperature sintering. It is rod- shaped, and also commonly known as“Wolf Teeth Mace" due to the protruding alloy particles on the surface of the rod. The granular particles are WC-Co cemented carbide, with the hardness of HRA89.5-91; the bonding metal is divided into copper-based alloy and nickel-based alloy; it is suitable for oxyacetylene welding process, with the surfacing temperature of about1000℃.

 Production  of  Copper Or Nickel Tungsten carbide rod Cemented Carbide Composite Welding Rods

The oxyacetylene butt, the operating process is as follows:

(1) clean up the workpiece, make the welding workpieces surface with metallic luster.

(2) the flat position of welding, therefore can use the appropriate clamping fixture for control of surfacing layer thickness, thick piece of available.

(3) with a neutral flame preheating, flame core not contact surface, the distance to 25 mm is advisable.

(4) carbide surfacing welding layer.With YD type electrode surfacing, the use of neutral flame (can be slightly carbonizing flame) tip is steady on the workpiece surface movement, the flame of the alloy electrode heating (be careful not to make flame cone tip contact alloy particles), tire body in the electrode alloy melt, carbide particles are also falling.Before the tire body of molten metal solidification, the particles arrange, can use left hand of the alloy electrode fingers, or another person holding a base electrode or pull rod on graphite rod in a quick stir particles, making them evenly aligned neatly.Surfacing layer thickness control according to the requirements of design.

(5) after the workpiece welding, where no ventilation, slow cooling, cannot quench, conditional usable asbestos blanket cover.

(6) the workpiece after cooling to room temperature, if necessary, grinding surface surfacing to required size and shape.

(7) clean up the workpiece, remove all splash, slag, etc.

Applications

YG Series Cemented Carbide Surfacing Rod is mainly used for surfacing the severely worn or cut workpieces in

petroleum, mining, coal mining, geology, construction and other industries, such as milling shoes, grinding shoes, centralizers, reamers, drill pipe joints, hydraulic cutters, scraper blades, coal plough bits, coring bits, piling bits, auger bits, etc.

Packing

step 1, wrapped carbide thread boring rods in paper to avoid carbide thread boring rods to broke
step 2, put the carbide thread boring rods in inner small carton box
step 3, put the inner box into outter carton and fill the carton with foamed plastic
step 4, wrap the carton with packaging tape
step 5, you can choose any delivery way such as DHL,TNT,UPS ect.

FAQ:

Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.

Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is  base of  tungsten carbide .

Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.

Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
