HIP Sinter Coated Carbide Saw Tips CK20/30/40 For Wood And Metal Working
HIP Sinter Coated Carbide Saw Tips CK20/30/40 For Wood And Metal Working
Product of manufacturer pretinned carbide cutting teeth saw blade tips

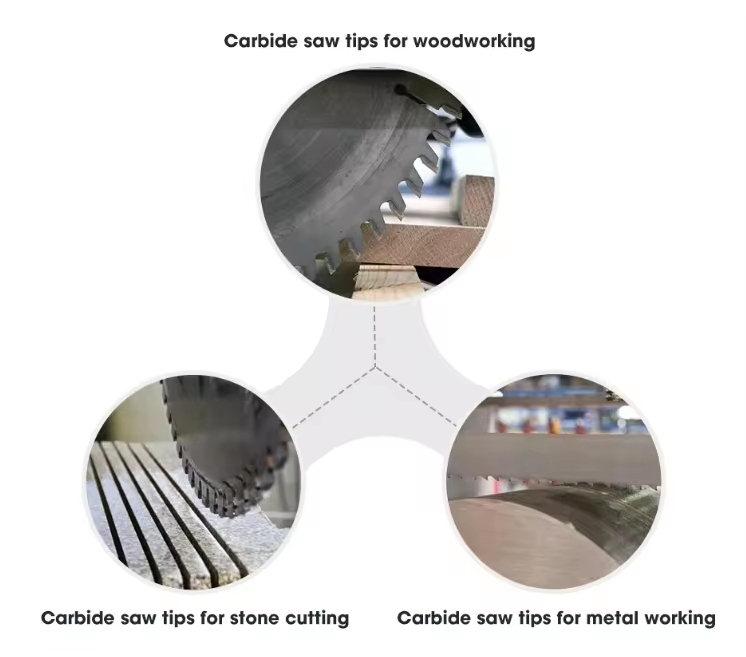

Tungsten carbide saw tip is used as the tips for the TCT saw blade for cutting all kinds of original wood, hard wood, HDF, MDF, plywood, particle board, laminated board, composite material, grass, aluminum and metals. It can give much more excellent performance than HSS .
Grade and application
Grade | Hardness(HRA) | TRS(N/mm2) | Density(g/cm³) | Grain size | Recommended Applications |
CD 10.8 | 90-90.5 | 2600-2900 | 14.75-14.85 | Medium | Suitable for ordinary electric tool saw blades,recommended for welding with welding wire of 5 silver or above |
CD 20.8 | 90.8-91.2 | 2600-2900 | 14.8-14.85 | Medium and fine | Suitable for cutting old wood with multi blade saws and cutting saws. It is recommended to use welding wire of 10 silver or more for welding |
CD 30.7 | 91.5-92 | 2600-2900 | 14.9-15 | Medium and fine | Suitable for blockboard saws with nails and professional electric tool saw blades, it is recommended to use welding wire or welding blades with a silver content of 20 or above for welding |
CD 30.8 | 91.6-92 | 2400-2700 | 14.75-14.85 | Fine | Suitable for ordinary aluminum cutting saws and color steel tile saws, it is recommended to use welding wire of 20 silver or above for welding |
CD 40.2 | 92.5-93 | 2300-2600 | 14.95-15.05 | Fine | Suitable for sharp plywood saws, slot saws, and high-quality extremely circulating saw blades. It is recommended to use welding wires or blades of over 30 silver for welding |
CD 40.3 | 93.1-93.4 | 2100-2500 | 15.05-15.18 | Super fine | Suitable for round wood multi blade saws, plywood saws,slot saw,C-grade cutting saws for processing door panels, professional portable aluminum saws, and professional thin saws,recommended to use welding wires or blades of over 30 or 49 silver for welding |
CD 40.4 | 93.4-93.8 | 2100-2500 | 15.05-15.18 | Super fine | Suitable for round wood multi blade saws,plywood saws, |
CD 40.5 | 93.4-93.7 | 2200-2400 | 15.1-15.2 | Super fine | C-grade cutting saw suitable for processing particleboard, professional grade aluminum saw blade, ordinary scoring saw, solid wood saw, recommended to use 49 silver welding blade for welding |
CD 40.5-2 | 94.1-94.5 | 2000-2400 | 15.12-5.2 | Super fine | Suitable for professional grade aluminum saw blades, B-grade board saws, scoring saws, acrylic saws, recommended to use 49 silver welding blades for welding |
CD 40.6 | 94.5-94.9 | 2000-2400 | 15.12-5.22 | Super fine | Suitable for reciprocating saw electronic saws, near A-grade cutting saws for processing impurity free particleboard, plywood saws, recommended to be welded with 49 silver solder blades |
CD 40.8 | 94.8-95 | 2000-2400 | 15.19-15.22 | Super fine | Suitable for electronic cutting saws, A-grade board saws, recommended to use 49 silver solder pads for welding |
CD 50.5 | 91-91.2 | 2700-3000 | 13.35-13.5 | Super fine | Suitable for gravity cutting of large diameter hacksaw, cutting seamless steel pipes, it is recommended to use 49 silver solder pads for welding |
Surface treatment

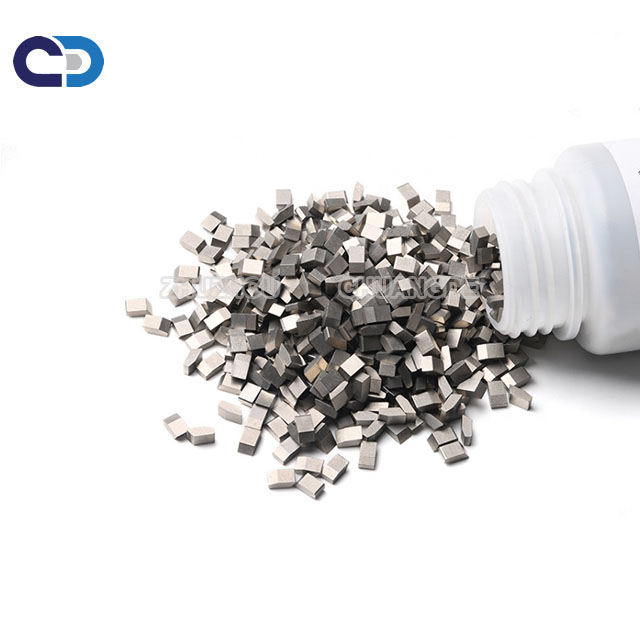

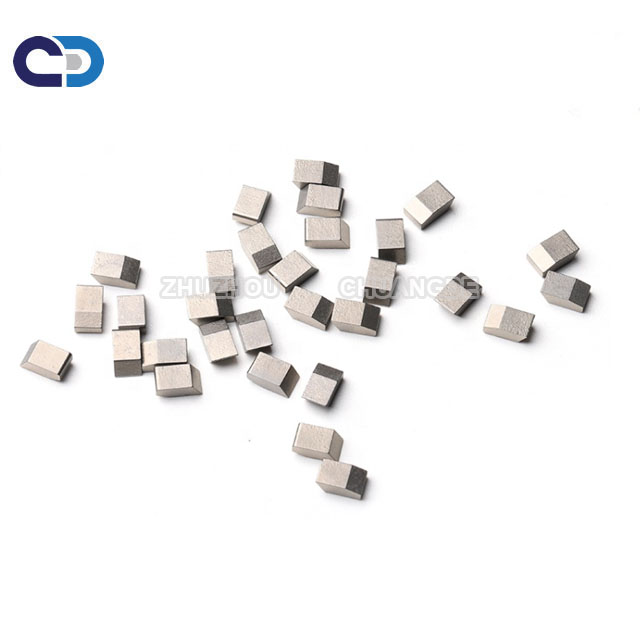

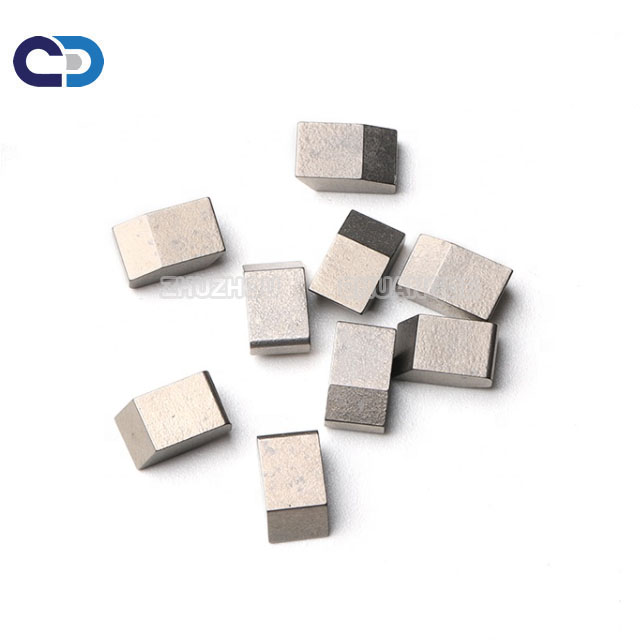

Tungsten Carbide Woodworking Saw Blade Tips
Cemented Carbide Saw Teeth/ Tungsten Carbide Saw tips For Rip Saw
Plywood Sawing Blade Anti-Nail Cemented Carbide Saw Teeth/ Carbide Sawing Tips
Easy to Brazed by Manual brazing or Automatic Welding Cemented Carbide Saw Tip

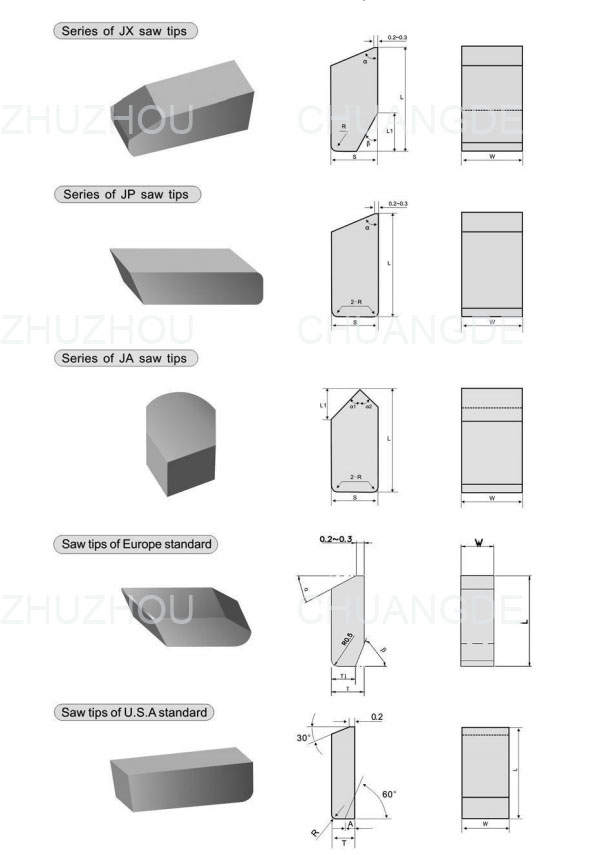

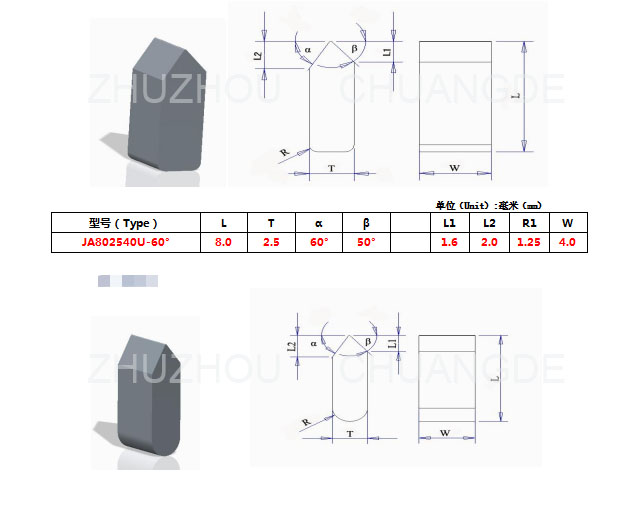

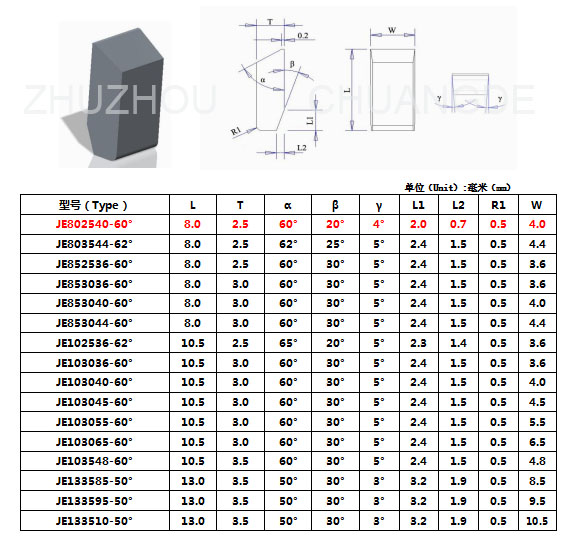

DIMENSION (MM) (Please send us drawing to confirm )
Tolerance control standard request
<td width="161" val
(Length)(mm) | (Width)(mm) | (Thickness)(mm) | ||
L | Width ranges | TOL | TOL | TOL |
≤5 | W≤2 | ±0.05 | +0.06 -0.04 |
±0.05 |
2 | ±0.06 | |||
3.5≤W≤5 | ±0.07 | |||
5~7 | W≤2 | ±0.06 | +0.08 -0.04 |
±0.05 |
2 | ±0.07 | |||
4≤W≤6 | ±0.08 | |||
7~9 | W≤3 | ±0.08 | +0.08 -0.04 |
±0.06 |
3 | ±0.10 | |||
5≤W≤8 | ±0.12 | |||
9~13 | W≤3.5 | ±0.10 | +0.08 -0.04 |
±0.06 |
3.5 | ±0.12 | |||
6≤W≤10 | ±0.15 | |||
13~17 |
All materials are tested in terms of hardness , density and T.R.S before using.
FAQ:
Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.
Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is base of tungsten carbide .
Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.
Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
