Chinese OEM&ODE High Quality wear-resistance corrosion-resistance tungsten carbide seat orifice plate

Material: Tungsten Carbide

Grade: Yg15

Feature: High hardness

Email：

info@cdcarbide.com

Feedback

Chinese OEM&ODE High Quality wear-resistance corrosion-resistance tungsten carbide seat orifice plate

Product Description

1. 100% virgin raw materials.
2. Various kinds of grades are availalbe based on customer's application.
3. we have professional advanced production line and inspeciton equipments to ensure high quality products.
4. Precision Ground and high polishing process
5. High wear resistance,high hardness and impact toughness
6. Advanced technology , precise grinding.

Material Grade List

ZHUZHOU CHUANGDE GRADE PERFORMANCE
Grade	Density	Hardness	TRS	矫顽磁力Coercive force	钴磁 CO Magnet
Grade	g/cm3	HV3（HRA）	MPa	KA/m	%
CD6	14.85~15.05	≥89.50	≥2400	12.0~15.9	4.9~5.9
CD6X	14.85~15.05	≥91.00	≥2300	19.2~25.7	4.9~5.9
CD8	14.65~14.85	≥89.00	≥2750	10.2~15.0	6.5~7.7
CD8C	14.55~14.75	≥87.50	≥2000	7.6~9.6	7.1~8.2
CD8.2	14.50~14.80	≥89.00	≥2800	9.5~13.0	7.0~7.8
YU08	14.56~14.65	≥1900	≥4000	34.0~43.0	6.3~7.7
YT5	12.90~13.10	≥89.50	≥1560	8.5~13.5	8.0~9.2
YT14	11.35~11.55	≥90.50	≥1400	10.5~15.4	7.3~8.1
YT15	11.15~11.35	≥91.00	≥1300	11.0~15.5	5.0~6.2
YW1	13.15~13.35	≥91.50	≥1290	16.0~22.5	5.5~6.2
YW2	13.05~13.25	≥90.50	≥1460	13.0~20.0	7.4~8.2
YW3	12.90~13.10	≥92.00	≥1390	16.5~21.8	5.5~6.1
CD11	14.30~14.50	≥87.00	≥2400	8.0~13.0	9.5~11.4
CD11C	14.20~14.40	≥86.50	≥2700	6.0~8.0	9.5~11.4
CD11C-N	14.35~14.55	87.50~89.00	2600~2760	7.2~11.0	8.6~10.4
CD15	13.95~14.15	≥86.50	≥2900	7.6~10.8	12.5~14.6
CD16C	13.75~13.95	≥84.00	≥3000	4.8~6.4	14.1~16.4
CD20	13.45~13.65	≥83.50	≥2800	7.0~8.9	18.0~19.8
CD20C	13.40~13.60	≥82.00	≥2900	3.2~4.8	16.7~19.8
CD25	12.90~13.10	≥82.00	≥3200	4.5~5.5	19.5~22.5
CD2T	14.35~14.55	≥91.50	≥2500	23.0~30.0	8.2~9.5
YK20	14.40~14.60	≥86.00	≥2460	5.5~8.3	8.8~9.8
YK25	14.40~14.60	≥86.50	≥2550	6.0~8.3	8.8~9.8
YK15.1	14.65~14.85	≥87.50	≥2310	8.0~12.9	7.0~7.9
YK40	14.10~14.30	≥85.50	≥2400	5.5~7.2	11.0~12.4
YK50	13.90~14.10	≥85.00	≥2350	5.5~6.5	12.8~14.3
YL10.2	14.40~14.60	1550~1650	≥3000	20.0~26.0	6.3~7.1

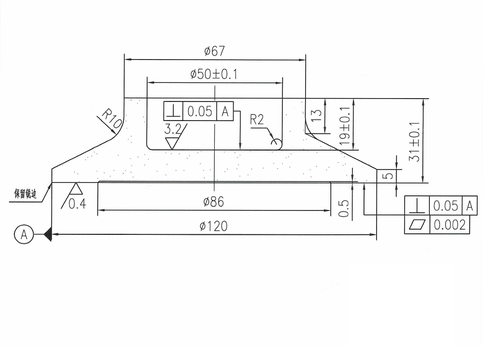

Drawing

Chinese OEM&ODE High Quality wear-resistance corrosion-resistance tungsten carbide seat orifice plate

All materials are tested in terms of hardness , density and T.R.S before using.

FAQ:

Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.

Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is base of tungsten carbide .

Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.

Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
