tungsten carbide round carbide button gripper inserts and tips

Material: tungsten carbide

Grade: YG10,YG11C,YG15

Features: High hardness and wear resistance

Application: Drilling,Mining machines

Email：

info@cdcarbide.com

Feedback

tungsten carbide round carbide button gripper inserts and tips

Product description:

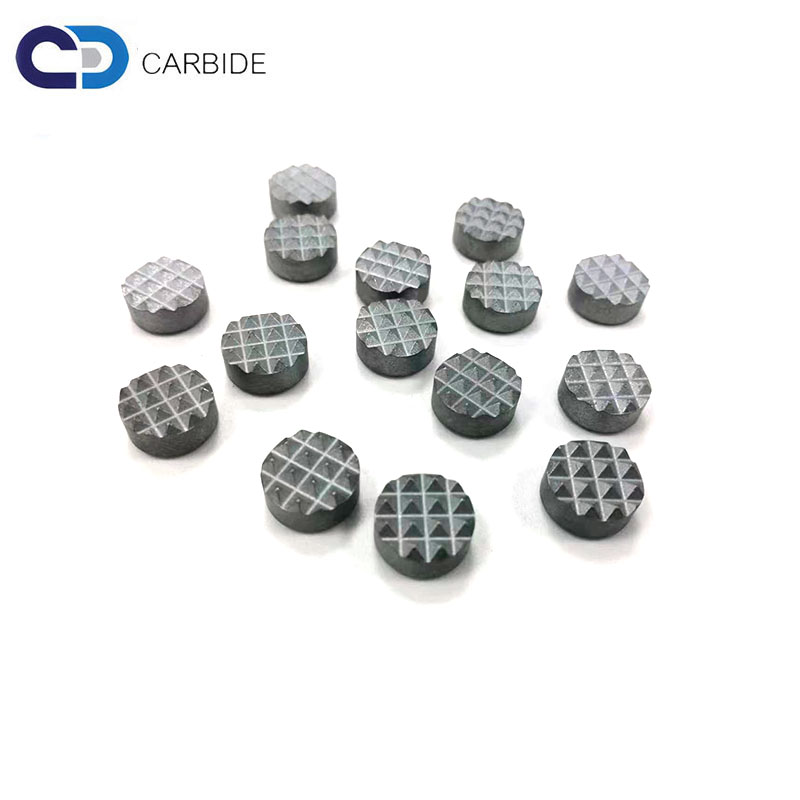

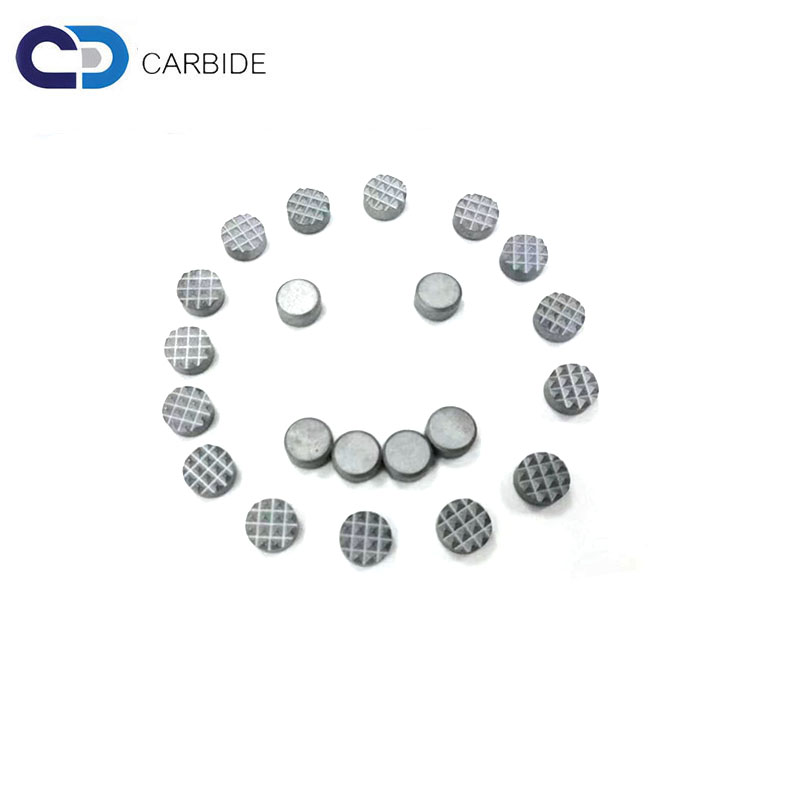

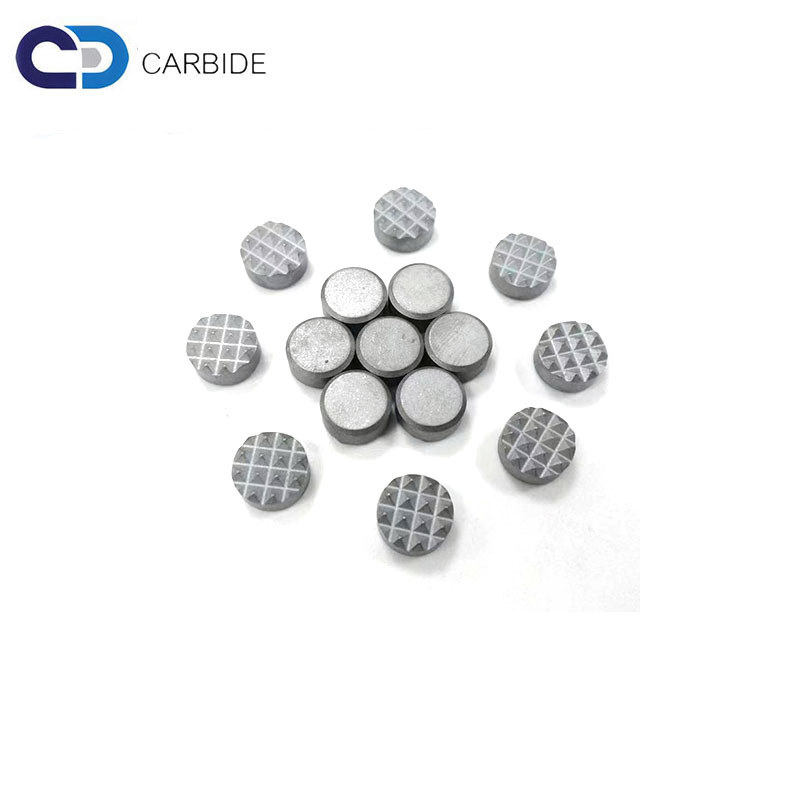

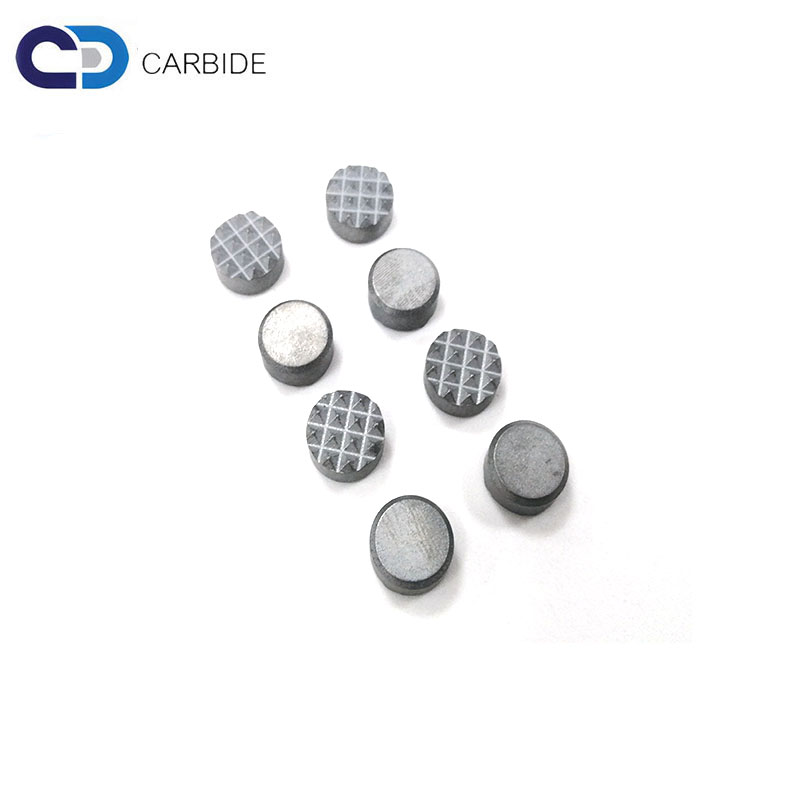

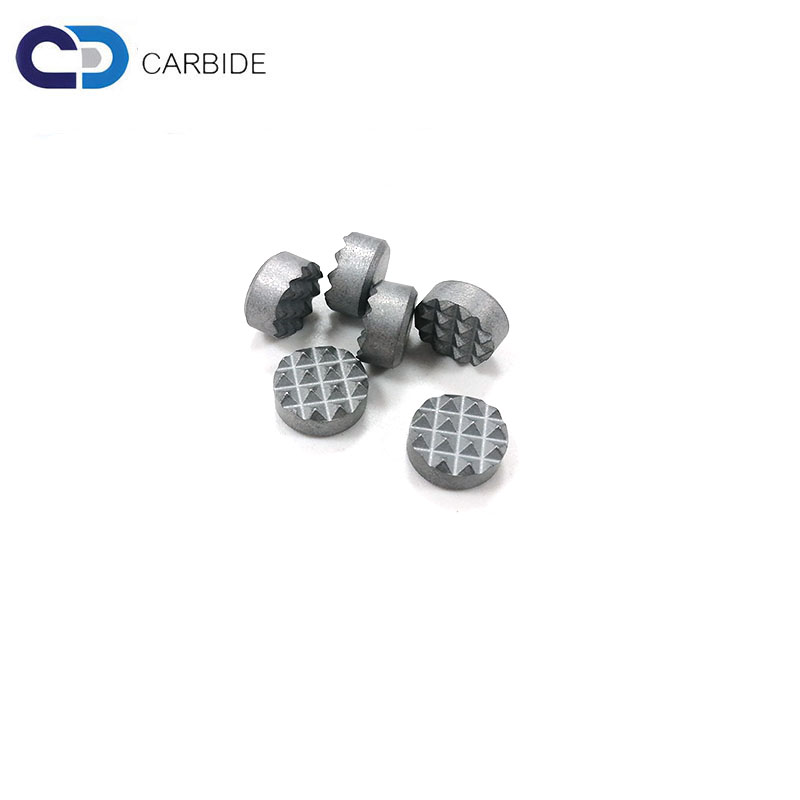

tungsten carbide round carbide button gripper inserts and tips

Carbide button bits for oil-field

The button bits are mainly used for tri-cone drill bits for oil and gas fields excavation and large-scale open-pit mine . And they are made into Tricone bit,PDC bit, horizontal directional driling system(HDD),with excellent product stability, ensuring the safety and reliability of deep mining.

Product grades:

Grade	Density	T.R.S	Hardness	Performance & application recommended	Approx Grades in China
Grade	g/cm3	MPα	HRA	Performance & application recommended	Approx Grades in China
CD6	14.9	2100	90	For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, usd in geological prospecting, coal mining and oil well boring.	YG6
CD6.1	14.7	2400	89.5	For coring crowns, electric coal drill bits, coal cutting picks, cone drill bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring.	YG8
CD06H	15	3000	90.5	Good strength and less wear resistance, for bits of rotary hammer rock drills and heavy rock drills, for hard and very hard rocks.	YK05, KK06H
CD15	14	2500	87.5	Good strength and less wear resistance, for bits of rotary hammer rock drills and heavy rock drills, for hard and very hard rocks.	YG15
CD10	14.7	2450	88.5	Mostly used as the buttons of small and mediumsized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations.	YG8C
CD15	14.7	2450	87.8	Suitable to strips, conical buttons for rotary,percussion-resistant, geological prospecting,buttons, cut soft and medium hard formations.	YK15/YG9C

Our Advantages:
1.Using over 100 % high purity tungsten carbide powder, it has a better strength and hardness combined with a longer service life than the normal one.

2.Taking isostatic pressing machine, our drill bit button has a uniform density and do not break easily.
3.HIP sintered, increase the strength substantially therefore extend service time; the abrasive resistance of carbide button can be increased by 24%.
4.Grinted by centerless grinder, it has precise measurement. Be welted tightly, it do not drop from drill.
5.Full range of types and specifications available.
6.10 engineers teamwork for your technical questions .

All materials are tested in terms of hardness , density and T.R.S before using.

FAQ:

Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.

Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is base of tungsten carbide .

Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.

Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
