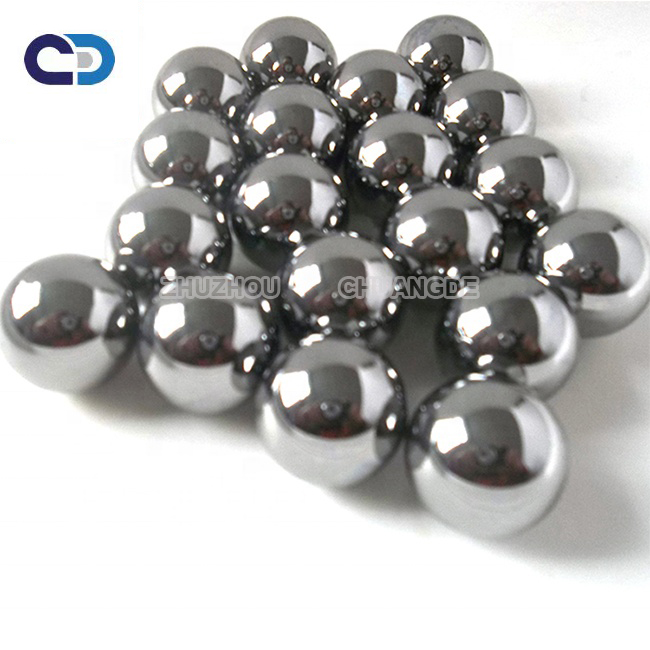

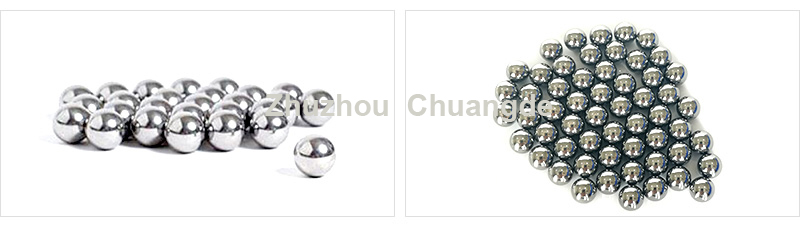

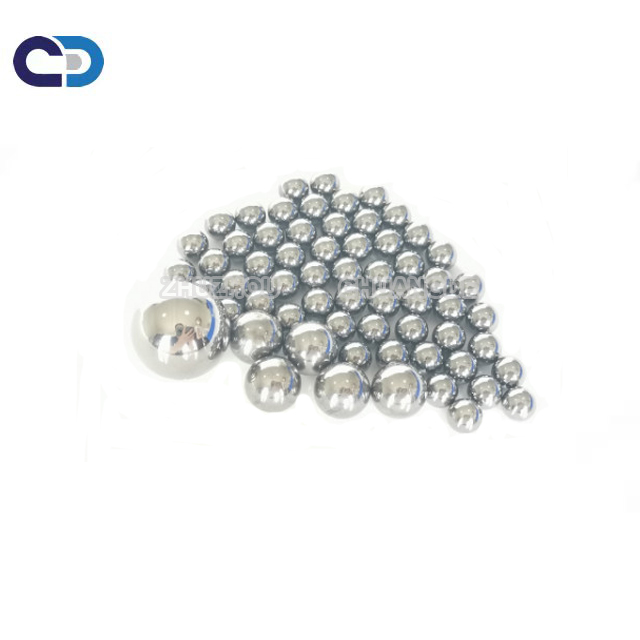

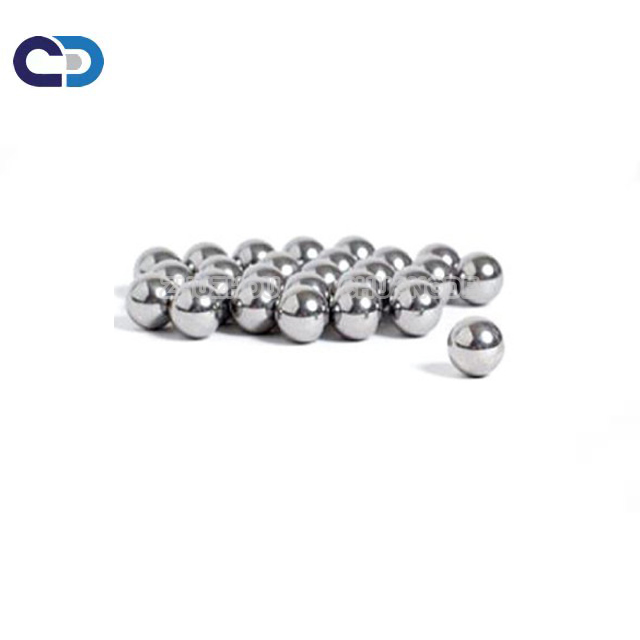

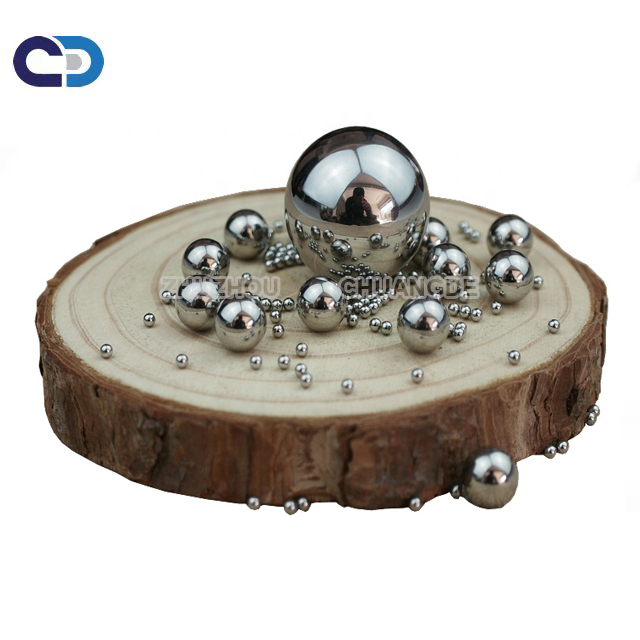

Chinese manufacturer tungsten carbide ball grinding tungsten ball bearing ball
Chinese manufacturer tungsten carbide ball grinding tungsten ball bearing ball
Description of Products

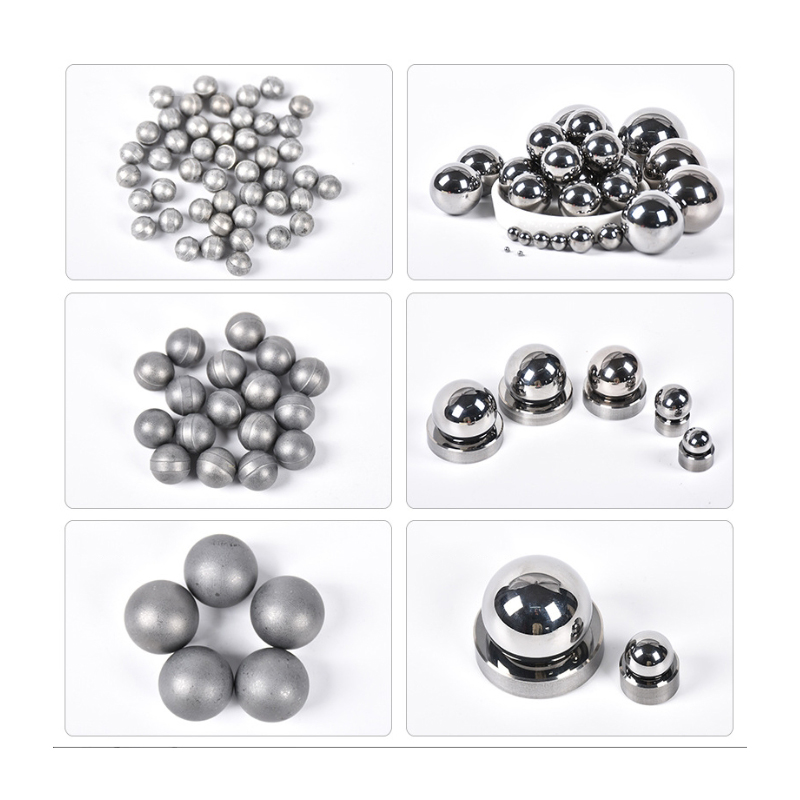

This balls and valve seats are comprise of tungsten carbide (WC) and Co or Ni in high temperature sintering.With high hardness, better wear-resistant, high-temperature corrosion -resistant and maching properties of high working accuracy.high finish etc. Widely supplied ball-rolling element in bearing industry, pump valve spool for fluid seal, check valve for pretroleum digger etc.also used in high-tech area in army and civil.
The specification can be made upon customer' s requirements
Dimensions
Ball dimension (mm) | ||
D±1.27(mm) | ||
15.88 | ||
19.05 | ||
23.83 | ||
28.58 | ||
31.75 | ||
34.93 | ||
42.88 | ||
57.15 |

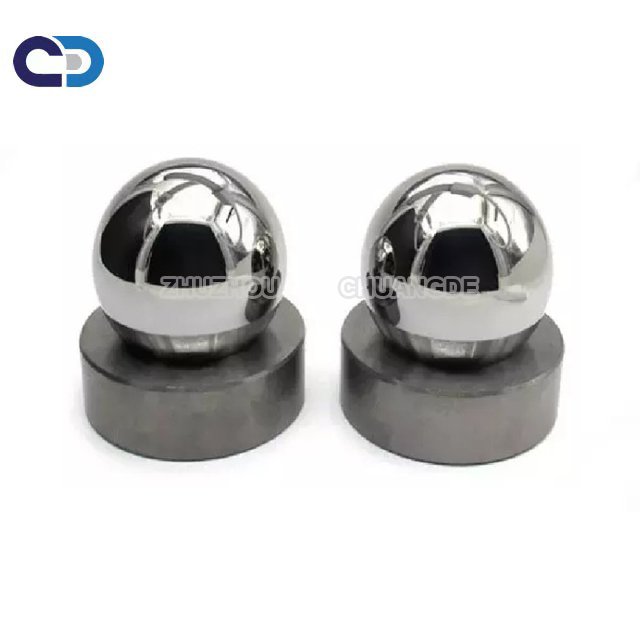

Seats sizes(mm) | ||
Outer diameter | Inner diameter | Height |
19.48 | 11.68 | 12.7 |
22.66 | 13.97 | 12.7 |
28.22 | 17.02 | 12.7 |
33.81 | 20.96 | 12.7 |
36.09 | 24.38 | 12.7 |
41.43 | 26.92 | 12.7 |
48.79 | 33.27 | 12.7 |
74.93 | 43.18 | 19.05 |
Type and specifications | |||||||
Dia. | Inch | 3/4 | 7/8 | 15/16 | 1 | 1 1/8 | 1 3/16 |
mm | 19.05 | 22.225 | 23.813 | 25.4 | 28.575 | 30.163 | |
Inch | 1 1/4 | 1 3/8 | 1 1/2 | 1 5/8 | 1 11/16 | 1 3/4 | |
mm | 31.75 | 34.925 | 38.1 | 41.275 | 42.863 | 44.45 | |
Inch | 2 | 1 1/4 | 2 1/2 | ||||
mm | 50 | 50.8 | 57.15 | 60 | 63.5 | ||
The surface finish, tolerance class and tolerances of dimensions have respectively reached the standards of the machine industry: G5, G10, G40 and G100 G1000of JB/T 9145-199 |
FAQ:
Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.
Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is base of tungsten carbide .
Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.
Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
