Hard Alloy YG6 Tungsten Carbide Buttons For Rock Drilling Tool

Home

Hard Alloy YG6 Tungsten Carbide Buttons For Rock Drilling Tool

Material:100%virgin raw material

For DTH drill bit

For well drill

For rock drill bit

Email：

[email protected]

Feedback

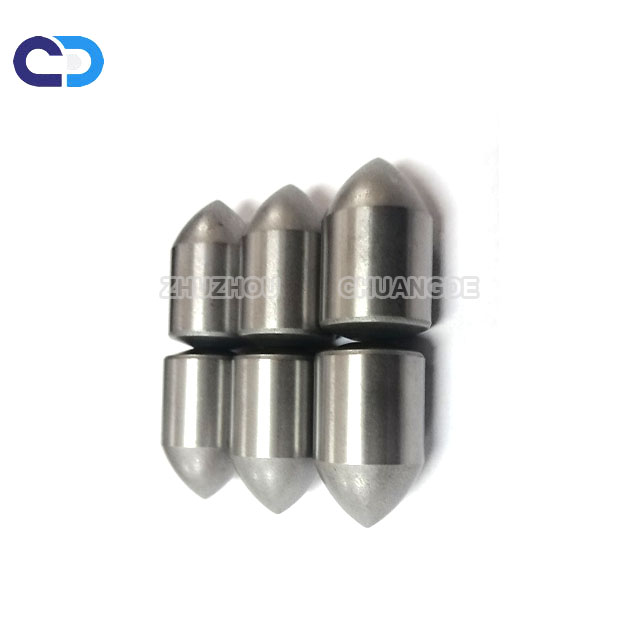

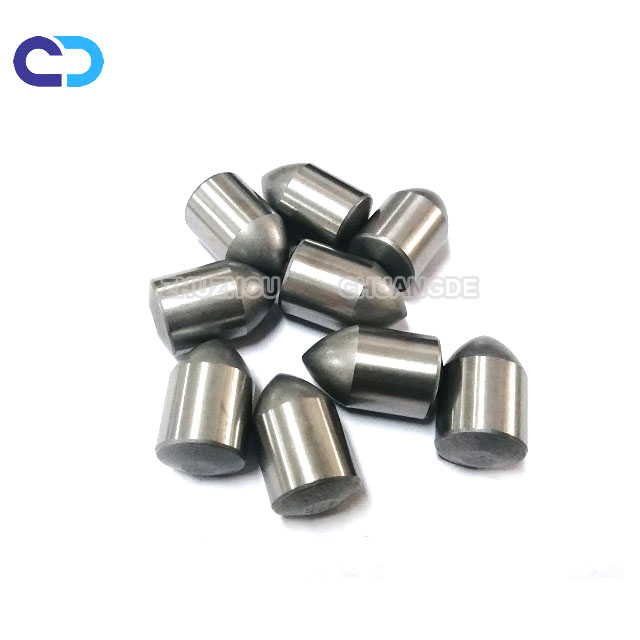

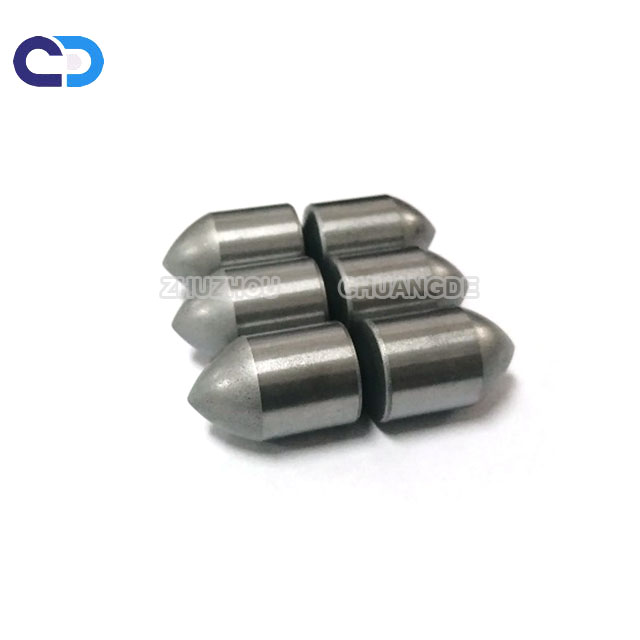

Hard Alloy YG6 Tungsten Carbide Buttons For Rock Drilling Tool

Hard Metal YG6 Tungsten Carbide Buttons For Rock Drilling Tool

Item	Tungsten carbide button
Grade	CD6, CD8, CK05, CK06H, CD8C, CD15, CD9C, CD10C, CD11C, CD13C, CD15C, CD15.
Sizes	customized or standard
Brand	CD
Country of Origin	Zhuzhou, China
Usage	DTH drill bit, earth auger drill, taper button bits, road milling teeth, rock drill bit, etc.

Our Advantages:

1.Using over 100 % high purity tungsten carbide powder, it has a better strength and hardness combined with a longer service life than the normal one.

2.Taking isostatic pressing machine, our drill bit button has a uniform density and do not break easily.

3.HIP sintered, increase the strength substantially therefore extend service time; the abrasive resistance of carbide button can be increased by 24%.

4.Grinted by centerless grinder, it has precise measurement. Be welted tightly, it do not drop from drill.

5.Full range of types and specifications available.

For hard granite rock ,the length of drilling can rach to 2900 feet

Product Application

tungsten carbide button are used in manufacturing drilling and mining equipments(mainly for dth Drill bits & Top-Hammer Drill Bits) which are used in drilling,mining, quarrying , water well drilling and other applications.

we procure carbide buttons from well-known suppliers who have state of the art infrsastructure and highly qualified engineers .our carbide buttons are made in technologically advanced machines which are designed to give products a total reliability,durability and complete customer satifcation.our supplier has own tungsten carbide mines so all the carbide buttons are made of 100% pure and geniuine tungsten powder.

size: 8*10mm 12*16mm 16mm*20mm 16*18m ....

Grade :YG6 YG8 Yg11 Yg11c ....

Application of Hard alloy oil field drill bits cemented tungsten carbide button teeth tips

Carbide button teeth normally used for

Grinding cement clinker,

Grinding cement limestone

Grinding cement bauxite, iron ore, etc

Grade and application

Grade	Density	T.R.S	Hardness	Performance & application recommended	Approx Grades in China
Grade	g/cm3	MPα	HRA	Performance & application recommended	Approx Grades in China
CD6	14.9	2100	90	For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, usd in geological prospecting, coal mining and oil well boring.	YG6
CD6.1	14.7	2400	89.5	For coring crowns, electric coal drill bits, coal cutting picks, cone drill bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring.	YG8
CD06H	15	3000	90.5	Good strength and less wear resistance, for bits of rotary hammer rock drills and heavy rock drills, for hard and very hard rocks.	YK05, KK06H
CD15	14	2500	87.5	Good strength and less wear resistance, for bits of rotary hammer rock drills and heavy rock drills, for hard and very hard rocks.	YG15
CD10	14.7	2450	88.5	Mostly used as the buttons of small and mediumsized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations.	YG8C
CD15	14.7	2450	87.8	Suitable to strips, conical buttons for rotary,percussion-resistant, geological prospecting,buttons, cut soft and medium hard formations.	YK15/YG9C
CD20	14.4	2550	87	Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations.	YK20/YG10C
CD25	14.5	2600	87.5	Primarily for the buttons and inserts of rotary percussion bits to cut medium hard and very hard formations.	YK25
CD30	14.4	2600	87	Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations.	YG11C
CD40	14.2	2650	86.5	Predominatly for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and vey hard formations.	YK40/YG13C
CD50	14	2700	86.5	For oil cone drill bits, for medium soft and medium -hard rocks.	YG15C

Mainly used as small buttons for percussion bits to cut soft and medium hard formations, small and medium sized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations. Suitable to strips, conical buttons for rotary percussion-resistant, geological prospecting buttons, cut soft and medium hard formations.

All materials are tested in terms of hardness , density and T.R.S before using.

FAQ:

Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.

Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is base of tungsten carbide .

Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.

Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
