YG10 YG15 YG20 Tungsten carbide rods bars non standard size

Home

YG10 YG15 YG20 Tungsten carbide rods bars non standard size

Dimension : can be customized or standard

ISO code grade: K01,k10,K20,k30,K40

Density: 12.75-15.3 G/cm3

TRS: 2800-3200N/mm2

Email：

info@cdcarbide.com

Feedback

YG10 YG15 YG20 Tungsten carbide rods bars non standard size

Cemented Carbide Tungsten carbide rods

1. 100% virgin raw materials.

2. Various kinds of grades are availalbe based on customer's application.

3. we have professional advanced production line and inspeciton equipments to ensure high quality products.

4. Precision Ground and high polishing process

5. High wear resistance,high hardness and impact toughness

6. Advanced technology , precise grinding.

Dimension

1. Type Specification: ØD×L

2. Application: for making cutting tools, for example end mills, dental burs, reamer etc.

3. Diameter: 3mm to 30mm

4. Length: standard 330mm/310mm or customized

5. Surface: blank or ground

6. Material: WC+CO

Product Name	Solid carbide rods blank and ground
Material	WC+CO
Grade	K05-K40
Grain Size	fine, medium
Hardness	87.6-94HRA
T.R.S	3000-4200
Surface	blank or ground
Application	Used for manufacturing cutting tools such as endmills, drills, reamers and dental burrs

Application

Tungsten carbide rods are mostly applied for end mill and drill with sub-micron grain grade YL10.2,for non-ferrous precision cutting and wood cutting with sub-micron grain grade YG6X,and for fibreglass reinforced plastics,titanium alloys,hardened steel with ultra-fine grain grade YG8X,ECT. It maintains features as stable mechanical properties, easy to welding, high wear-resisting, etc. All of our tungsten Carbide Products are made from the high-purity Original/Virgin Raw Materials and HIP/Sintered, be of very high quality and excellent performances.

Grade	ISO	Grain size	Cobalt Content (wt-%)	Density g/cm3	HARDNESS HRA	TRS (N/mm2)	APPLLICATION
K10UF	K05-K10	0.6	6.0	14.8	94	3800	Ultrafine grain size,with good wear resistant.higher wear resistant endmill and engraving tools are recommended.suitable for cutting PCB and plastic.
CD6	K10	1.0	6.0	14.95	92	3000	Drilk endmill and burr are recommended.Especially suitable for cutting non-ferrous metal and graphite(coating is needed).
K20UF	K20	0.7	8.0	14.6	92.5	3200	For cutting of the aluminum specially .
K40UF	K30	0.6	10	14.4	91.8	3000	Drill and endmill are recommended. Suitable for cutting stainless steek heat resistant alloy and cast iron.
CD15	K40	1.5	15	14	87.6	4000	Suitable for making punching of moulds、tools and anti -vibration boring bar etc.

Dimension

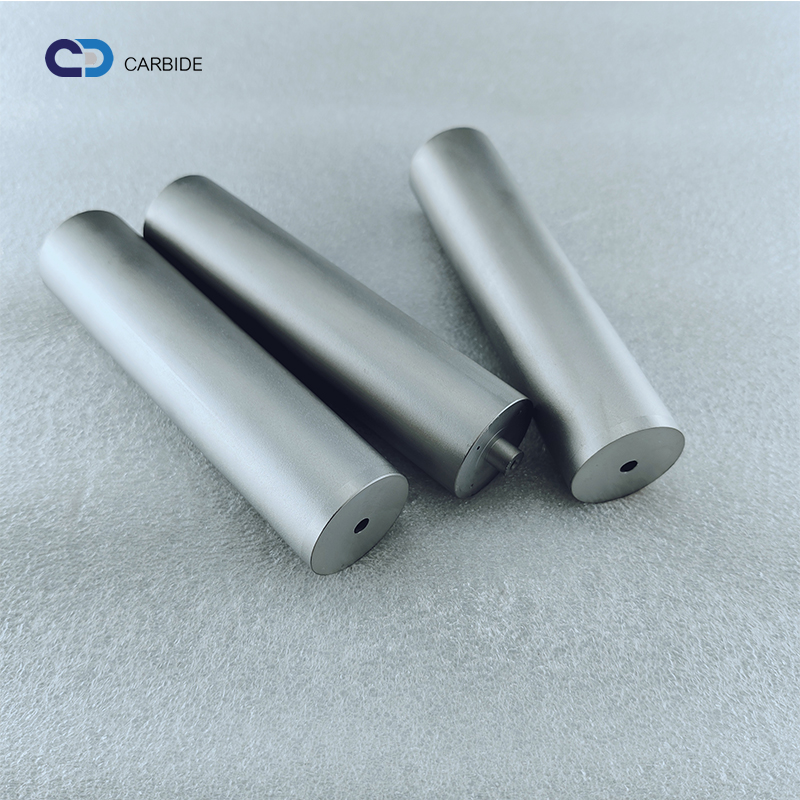

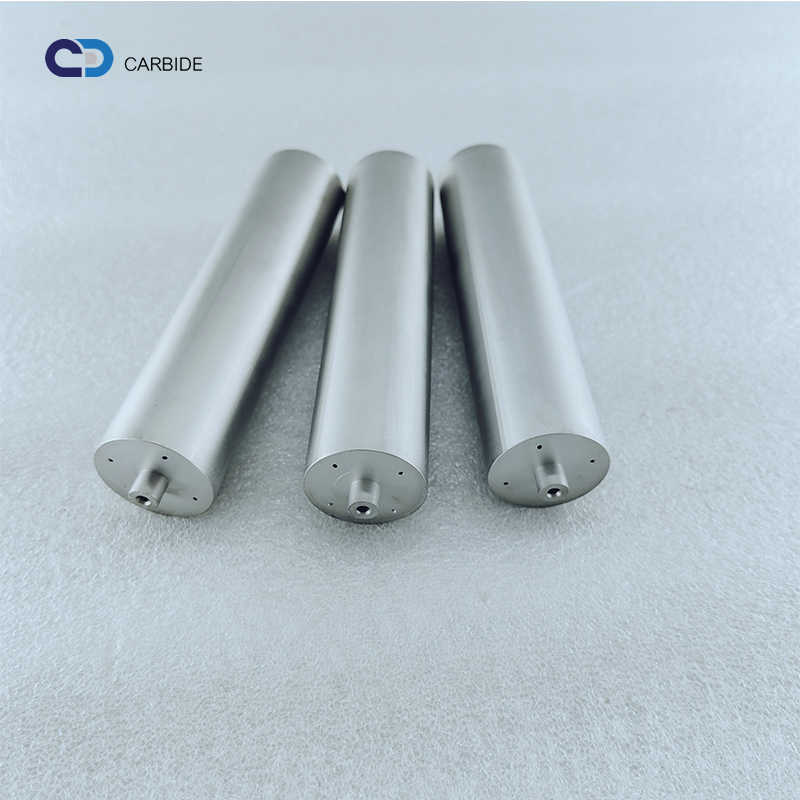

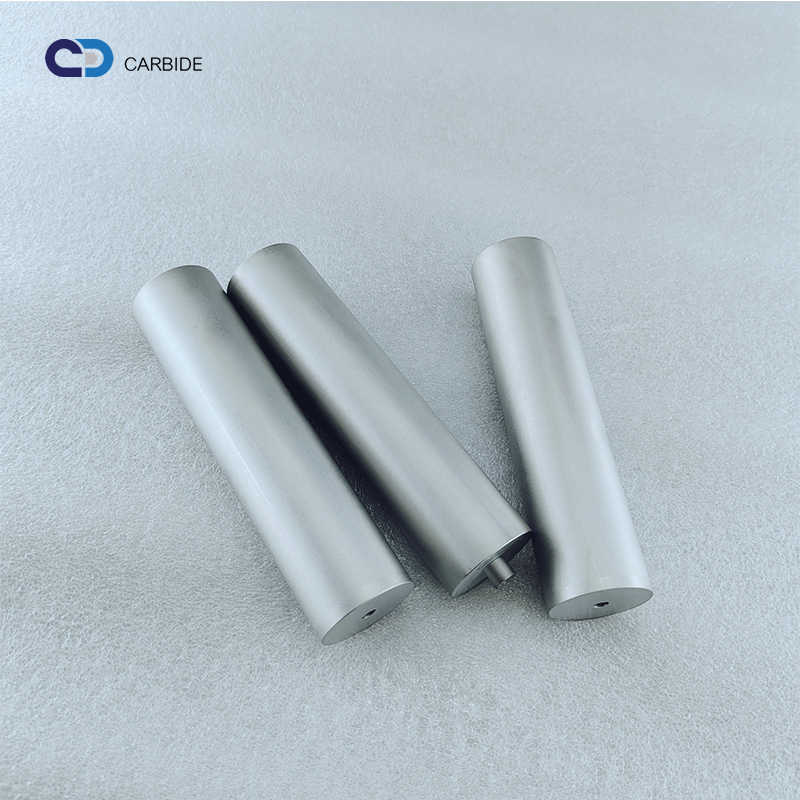

Without holes OD3-30*100/110/300/330mm h6 ground polished

YL10.2 Cemented carbide Tungsten carbide rods bars

All materials are tested in terms of hardness , density and T.R.S before using.

FAQ:

Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.

Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is base of tungsten carbide .

Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.

Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
