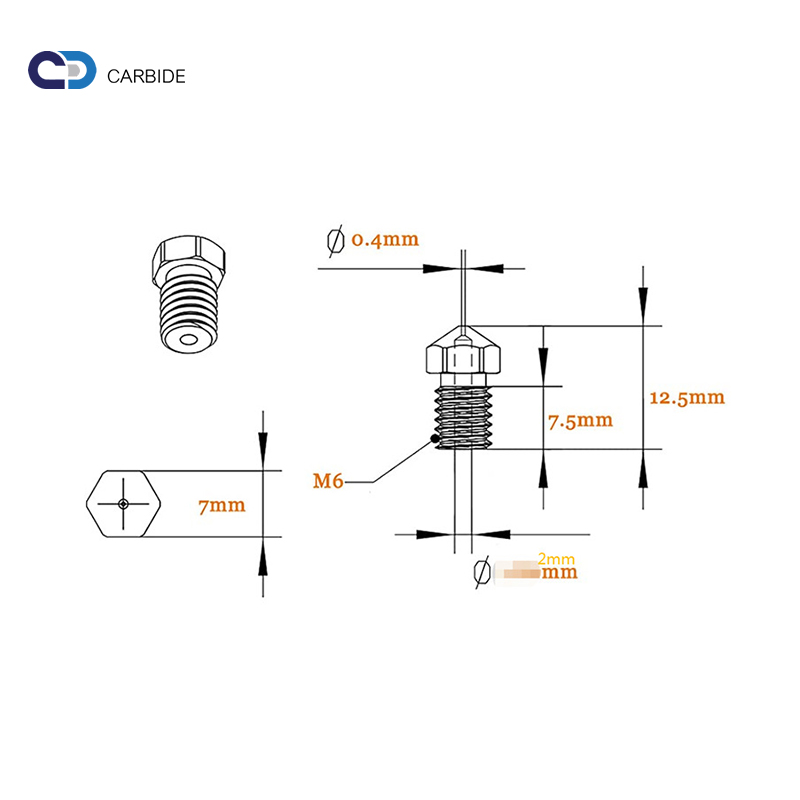

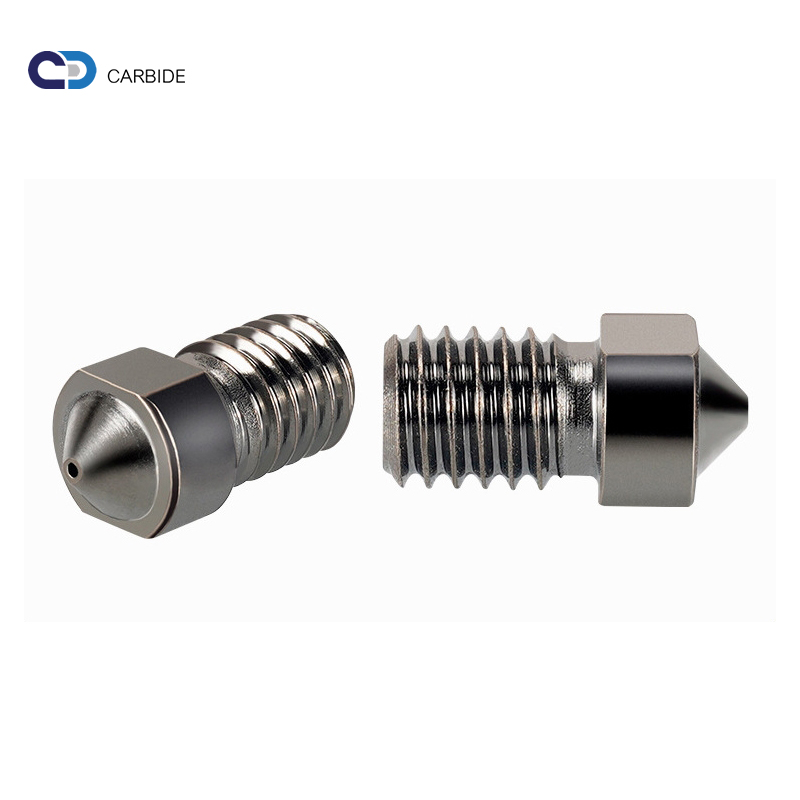

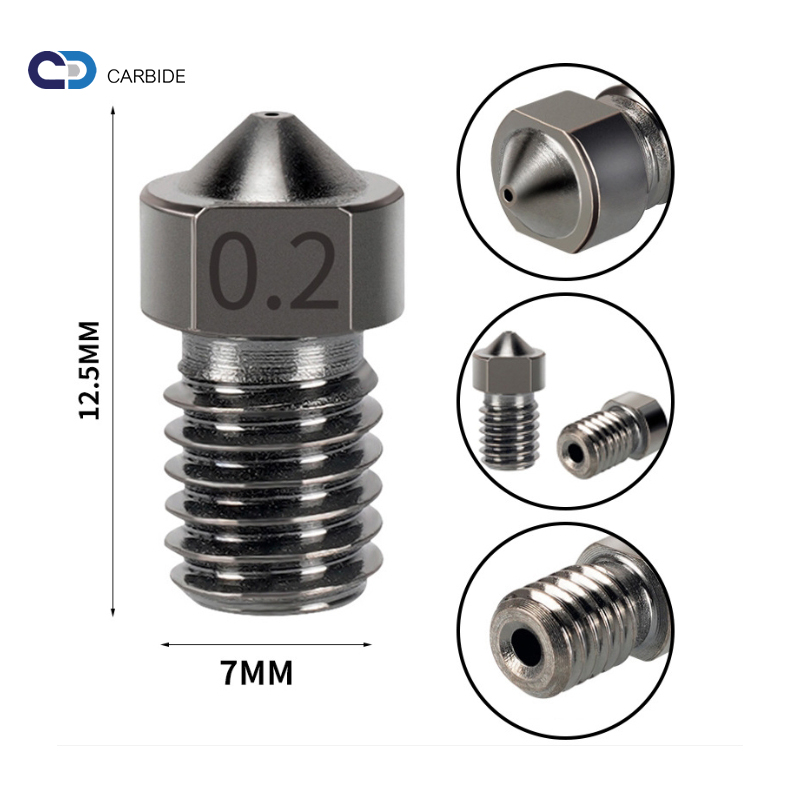

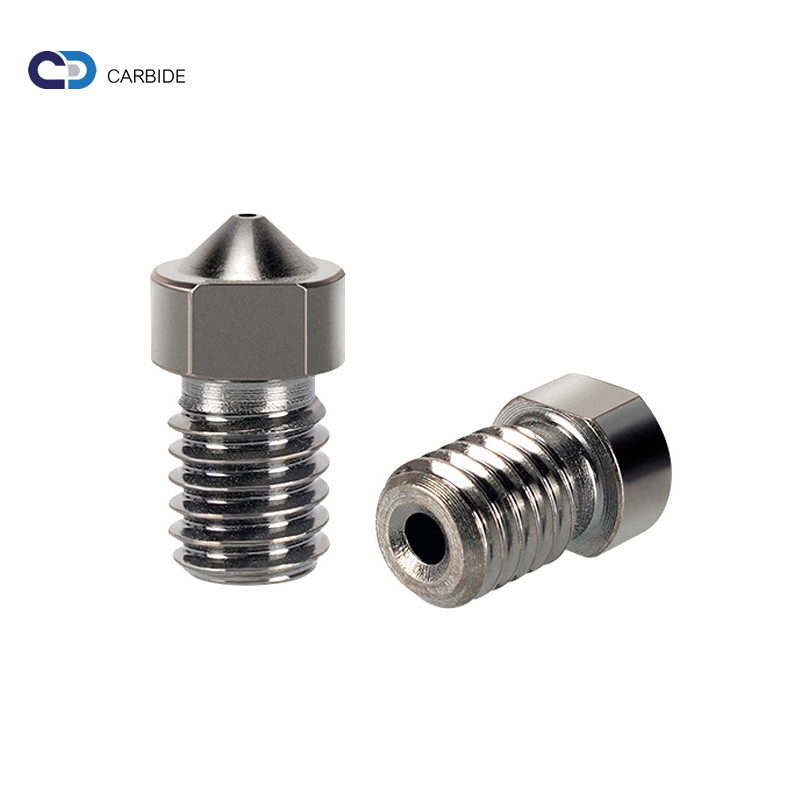

M6 M8 0.2 0.4 0.6 0.8mm Tungsten Carbide Nozzle for 3D printing machine
M6 M8 0.2 0.4 0.6 0.8mm Tungsten Carbide Nozzle for 3D printing machine
Tungsten carbide nozzle for 3D printer adopts international class K20. Compared with traditional brass nozzles, cemented carbide nozzles have the following advantages:1. Super wear resistance 2. High temperature resistance 3. Low thrust 4. Faster extrusion speed 5. Small hole tolerance (±0.05mm) 6. Longer service life Conventional nozzle diameter: 0.4mm, 0.6mm, 0.8mm... CDcarbide can be customized according to the drawings provided by customers!
Compatible with:
Reprap M6 hotends
E3D v5-v6 hotends
Original Prusa i3
Package contents:
1 tungsten carbide nozzle for 1.75mm filament (Size 0.3mm, 0.4mm, 0.5mm, 0.6mm, or 0.8mm orifice)
2.Recommended tungsten carbide grade list
Grade | Co (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
YG11-C | 9.0-11.0 | 14.33-14.53 | 88.6-90.2 | 2800 |
YG15-C | 15.5-16.0 | 13.84-14.04 | 85.6-87.2 | 2800 |
YG15X | 14.7-15.3 | 13.85-14.15 | ≥89 | 3000 |
YG20 | 18.7-19.1 | 13.55-13.75 | ≥83.8 | 2800 |
YG06X | 5.5-6.5 | 14.80-15.05 | 91.5-93.5 | 2800 |
YG8 | 7.5-8.5 | 14.65-14.85 | ≥89.5 | 2500 |
YG10X | 9.5-10.5 | 14.30-14.60 | 90.5-92.5 | 3000 |
FAQ:
Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.
Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is base of tungsten carbide .
Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.
Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
