YG15 manufacturer Tungsten Carbide Bushing die

Home

YG15 manufacturer Tungsten Carbide Bushing die

Material：100% Virgin Tungsten Carbide

Applicable Industries： Manufacturing Plant, Construction works , Energy & Mining

Process： Precision Machining

Surface： treatment Polishing

Email：

info@cdcarbide.com

Feedback

YG15 manufacturer Tungsten Carbide Bushing die

Description of YG15 manufacturer Tungsten Carbide Bushing die

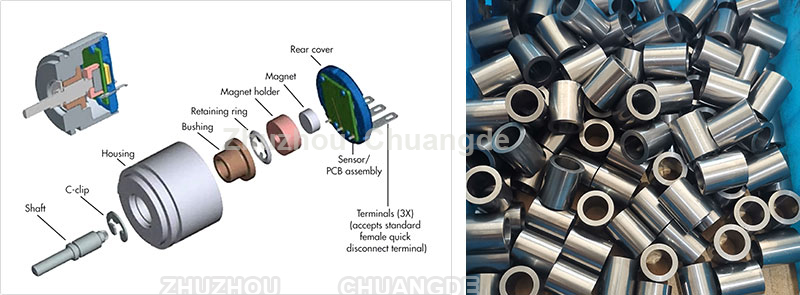

Cemented carbide bushings are also called tungsten steel bushings, which have a wide range of applications. This is a device for protecting a class of parts. It has a great relationship with the function and purpose of its application environment in actual work. In valve applications, the shaft sleeve is installed on the valve stem bonnet to reduce valve leakage and seal; in bearing applications, bushings are used to reduce the wear between the bearing and the shaft seat, and to avoid the increase in the gap between the shaft and the hole, etc. . Cemented carbide bushings have high hardness and strength, can withstand long-term loads, have high chemical stability, and can corrode in alkalis, alcohols, ethers, hydrocarbons, acids, oils, detergents, water (seawater), etc. Sexual medium environment use. Odorless, non-toxic, tasteless, and non-rusting, it is widely used in submersible oil pumps, slurry pumps, water pumps, centrifugal pumps, etc. in the petrochemical industry.

Long Life Tungsten Carbide Bushing

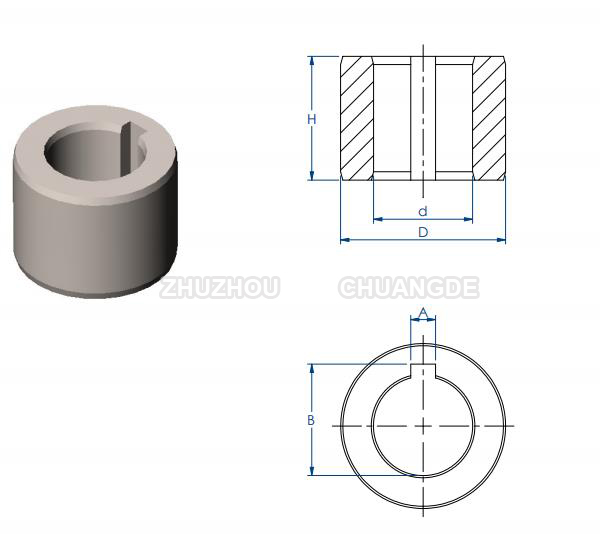

Mold Parameter Diagram

Long Life Tungsten Carbide Bushing

Dimensions (mm)
D	d	H	a
20.0-40.0	17.0-30.0	10.0-36.0	1.6
41.0-80.0	31.0-70.0	10.0-36.0	3.2

Grade List

Chinese Grade	Equal to ISO Category Number	Chemical Composition		Physical Mechanical Properties
		WC	Co	Density	Bend Strength	Hardness
		%	%	G/Cm3	N/mm2	HRA
YG3	K01	96.5-97	3	14.9-15.3	≥1180	≥91.0
YG6X	K10	93.5	6	14.8-15.1	≥1420	≥92
YG6	K20	94	6	14.7-15.1	≥1600	≥91
YG8	K20-K30	92	8	14.5-14.9	≥1600	≥90
YG10	K40	90	10	14.3-14.7	≥1900	≥89
YG10X	K40	89	10	14.3-14.7	≥2200	≥89.5
YG15	K30	85	15	13.9-14.2	≥2100	≥87
YG20	K30	80	20	13.4-13.7	≥2500	≥85.5
YG20C	K40	80	20	13.4-13.7	≥2200	≥85.5
YG30	G60	70	30	12.8	≥2750	≥82

Advantages:

1. It has strong hardness and high bending strength, wear resistance and corrosion resistance. 2. The product has stable performance and high accuracy 3. Made of virgin material, long service life, can reduce the replacement of bushings, and increase work efficiency 4. No mold costs are needed, saving costs

FAQ:

Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.

Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is base of tungsten carbide .

Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.

Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
