Cemented tungsten carbide wire drawing die

Home

Cemented tungsten carbide wire drawing die

Alloy Specification: K01 K05 K10 K20 K30 K40

Material: WC+CO

Color: Grey

Application: tungsten carbide die for wire drawing , steel drawing etc

Email：

info@cdcarbide.com

Feedback

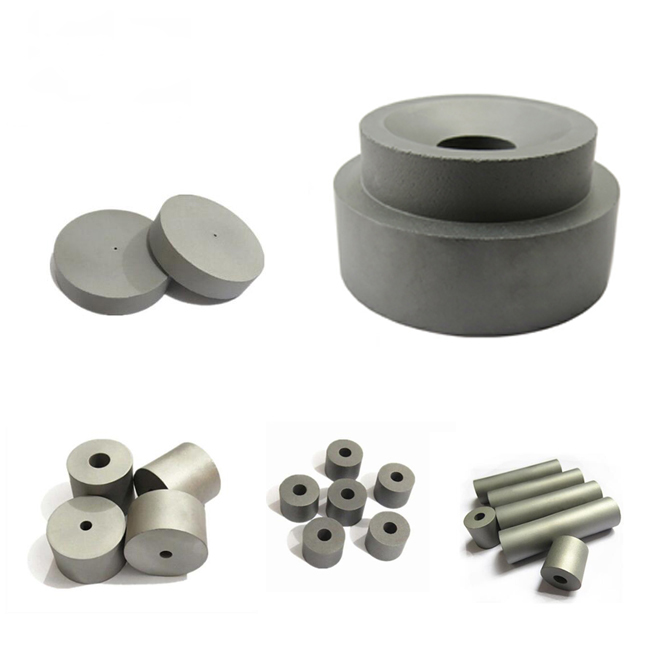

Cemented tungsten carbide wire drawing die

Cemented tungsten carbide wire drawing die

1. Product Description:

Tungsten carbide, abbreviated as WC or TC, also called cemented carbide, hardmetal or widia, is a metal matrix composite where tungsten carbide particles are the aggregate and metallic cobalt serves as the matrix. It is a non-oxidizing ceramic that can withstand high temperatures while maintaining a hardness comparable to corundum or sapphire.

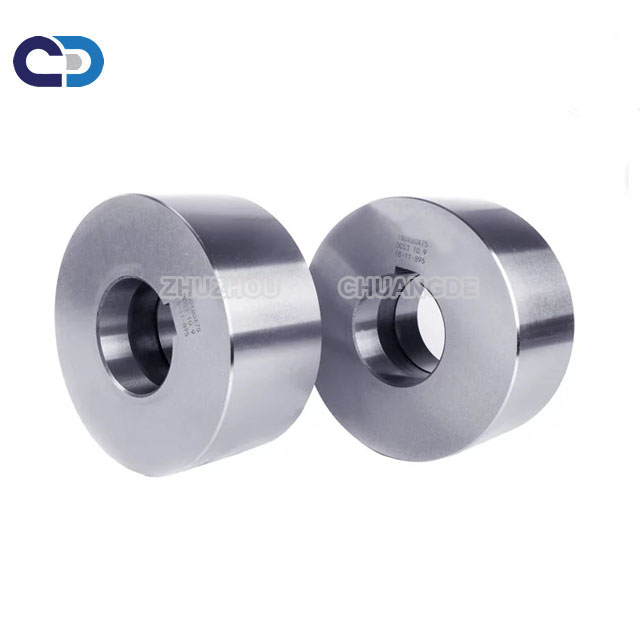

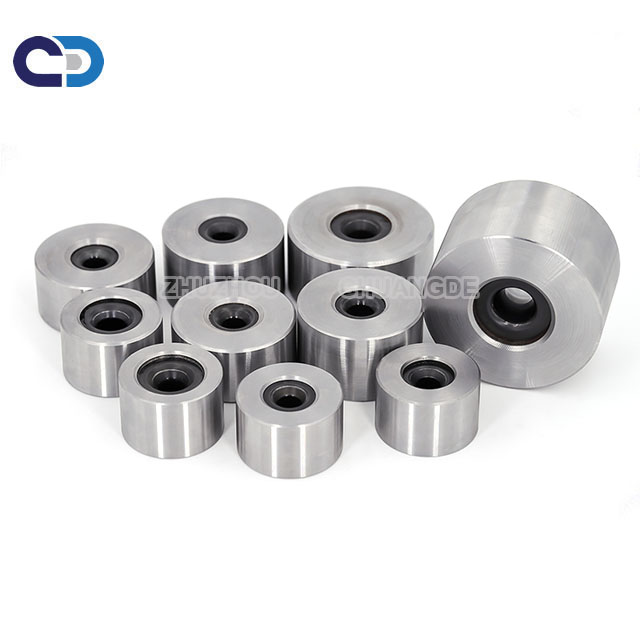

Dimension of Steel case +TC nibs

Case Size(mm)		Nib Size(mm)		Hole Size	Tolerance
OD	H	od	h	mm	mm
25x12		9x6		0.15~0.5	0~-0.02
30x16		13x10		0.5~2.6	0~-0.02
32x23		16x13		0.8~3.5	0~-0.02
32x23		16x14		1.0~3.5	0~-0.02
40x25		20x17		1.5~6.5	0~-0.02
40x26		22x18		1.8~6.5	0~-0.02
50x28		25x20		3.0~9.5	0~-0.02
70x35		30x22		5.5~12.5	0~-0.02
75x35		35x25		8.5~16.5	0~-0.02
80x35		40x25		16.5~21.5	0~-0.02
110x45		50x28		21.5~24.5	0~-0.02
120x50		60x35		24.5~34.5	0~-0.02
130x60		70x35		34.5~43.5	0~-0.02
140x60		80x35		34.5~45.5	0~-0.02
150x60		90x35		45.5~51	0~-0.02
160x75		100x40		51~56	0~-0.02
170x75		110x40		57~65	0~-0.02
180x80		120x45		66~69	0~-0.02
190x85		130x50		70~76	0~-0.02

2.Grade:

Grade No.	Density (g/cm3)	HRA	T.R.S (Mpa)	Application
YG3X	14.9	≥91.5	≥1300	For drawing non-ferrous metal wire and stainless steel wire etc.
YG6	14.8	≥90.0	≥2150	For drawing steel wire and stainless steel wire etc.
YG6X	14.8	≥92.0	≥1860	For drawing nonferrous metal wire, steel wire, stainless steel wire. Good wear resistance and high toughness..
YG8	14.8	≥89.5	≥2320	For drawing steel wire, stainless steel wire. Good general performance.
YG11	14.4	≥88.5	≥2420	For fabricating drawing dies of steel tubes and rods under high compressibility ratio; punching, stamping, forging tools under large stress.

3.Application

1. Used for making high temperature parts, wear parts, anti-shielding parts and corrosion-resistant parts.

2. Used in making hardware and standard stamping moulds.
3. Applicable for electronic industry, motor rotor, stator, LED lead frame, EI silicon sheet and so on.
4. Used for producing drawn mold, wear-resistant parts, stamping parts and automatic press with punch.
5. Used for stamping die, extrusion die, stamping molds.
6. Drawing many kinds of steel wire, aluminum wire, high carbon, MS wire etc

Tungsten carbide wire drawing die YG6 YG6X

Advantage of Tungsten carbide dies
1. Material:100% virgin raw material with submicron grain size
2. Grade: Various grades for choice
3. Advanced production equipments and testing equipments
4. Precious Ground and polished
5. High wear resistance,high hardness and impact toughness
6. Advanced technology, automatic pressing, HIP sintering and precision grinding
7. Samples & small orders are acceptable.

FAQ:

Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.

Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is base of tungsten carbide .

Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.

Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
