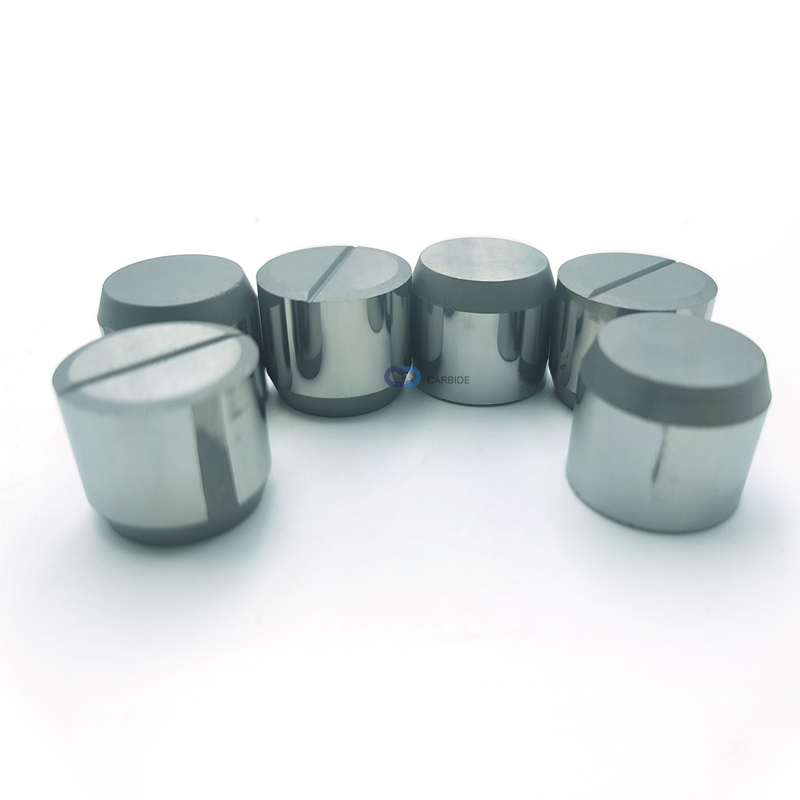

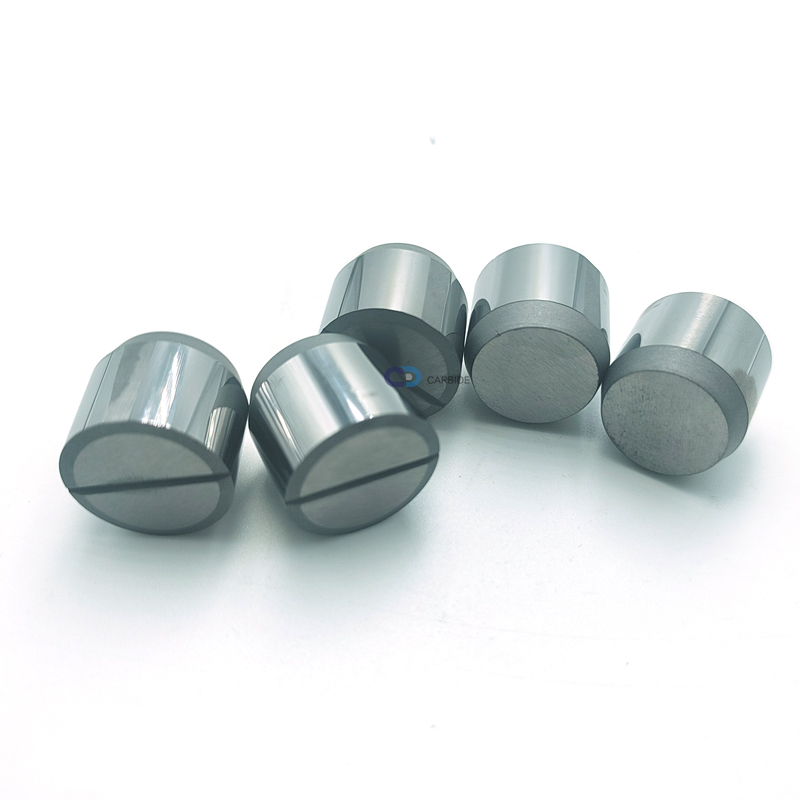

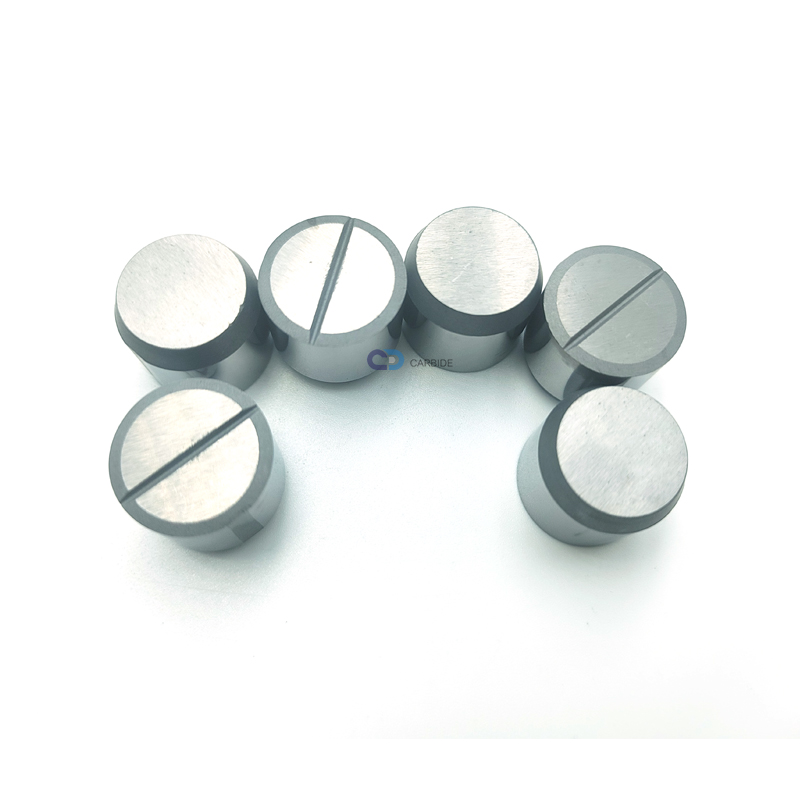

Factory Custom YG11C Tungsten carbide button inserts for Mining
ଇମେଲ୍ କରନ୍ତୁ |：
Factory Custom YG11C Tungsten carbide button inserts for Mining
Description
1.100% virgin material
2.fast delivery
3.ISO quality control
4.stable and reliable
5.sample available
6.surface polished
7.free online technical service available
8.various grades YK05/YK10/YK20/YK25/YK40 etc

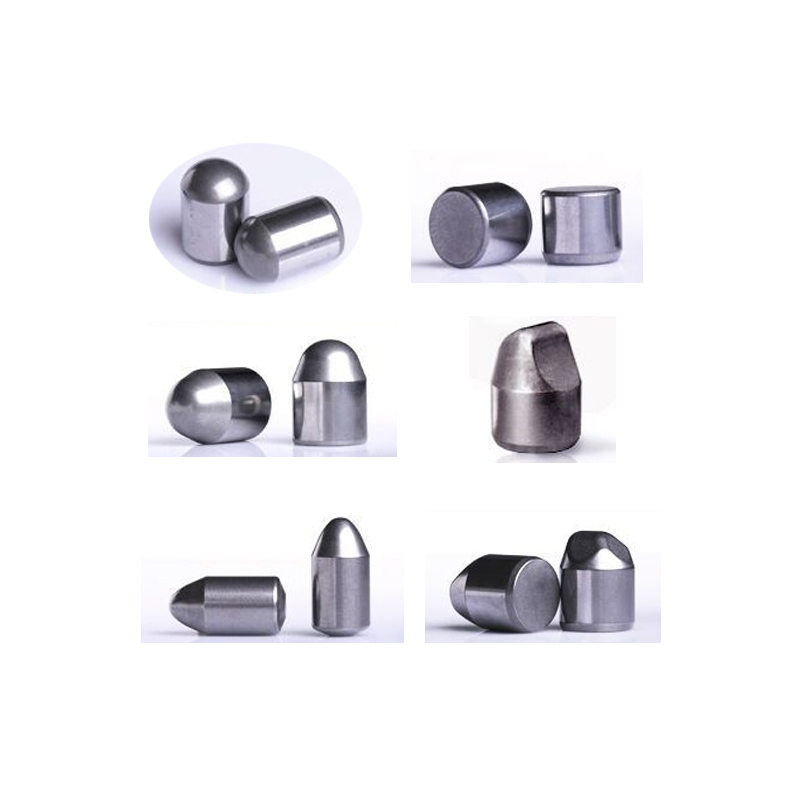

9.various Types: type Q(spherical), type Z(conical), type D(parabolic), type P(flat-top) etc
Features:
Sintered micro-grain carbide;
Excellent impact, wear, and corrosion resistance;
Varied button shapes for different rock formations;
Consistent quality;
Competitive price;
Customization service.
RECOMMEND GRADES AND SPECIFICATIONS:
| Grade | Density (g/cm3) | Hardness (HRA) | T.R.S (MPa) | Application recommended |
| YG6 | 14.95 | 90.5 | 1900 | For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring. |
| YG8 | 14.8 | 89.8 | 2800 | Used as a core drill, electric coal drill, coal cutter tooth, oil roller bit and scraper button bit. |
| YG8C | 14.8 | 89.8 | 2800 | Mainly used for small and medium-sized drill bit tooth, and as a rotating exploration drill bush. |
| YG11C | 14.4 | 86.5 | 2700 | Most used in the drill bit and rock bit used for cutting high hardness materials ball tooth. |
| YG13C/YK40 | 14.2 | 86 | 2900 | mainly used for rotary drill bit used for cutting high hardness materials in ball mill. |
| YG15C | 14 | 85 | 3000 | Used in oil cone bit and soft in the hard rock digging cutting tools. |
| YK05 | 14.9 | 90.5 | 2600 | Mostly used as the buttons of small and medium sized bits to cut soft and medium hard formations |
| YK15 | 14.6 | 88 | 2750 | Suitable to strips, conical buttons for rotary percussion-resistant geological prospecting buttons, cut soft and medium hard formations. |
| YK20 | 14.5 | 87.5 | 2800 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and very hard formations, |
| YK25 | 14.4 | 87.2 | 2550 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard, hard, and very hard formations |
Application
Tungsten carbide button are used in manufacturing drilling and mining equipments(mainly for dth Drill bits & Top-Hammer Drill Bits) which are used in drilling,mining, quarrying , water well drilling and other applications.
we procure carbide buttons from well-known suppliers who have state of the art infrsastructure and highly qualified engineers .our carbide buttons are made in technologically advanced machines which are designed to give products a total reliability,durability and complete customer satifcation.our supplier has own tungsten carbide mines so all the carbide buttons are made of 100% pure and geniuine tungsten powder.
DIMENSION (MM)
ପ୍ରଶ୍ନ:
Q1: ଆପଣ କାରଖାନା ନା ବାଣିଜ୍ୟ କମ୍ପାନୀ?
ଆମେ 12 ବର୍ଷର ଉତ୍ପାଦନ ଅଭିଜ୍ଞତା ସହିତ କାରଖାନା |
Q2: ଆପଣଙ୍କ କାରଖାନା କେଉଁଠାରେ ଅବସ୍ଥିତ?
ଆମେ ହୁନାନ ପ୍ରଦେଶର ଜୁଜୋ ସହରରେ ଅବସ୍ଥିତ ଯେଉଁଠାରେ ଟୁଙ୍ଗଷ୍ଟେନ୍ କାର୍ବାଇଡ୍ର ମୂଳ ସ୍ଥାନ |
Q3: ମୂଲ୍ୟ ପ୍ରତିଯୋଗୀ କି?
ଆମର ନିଜସ୍ୱ କାରଖାନା ଅଛି | ଶକ୍ତିଶାଳୀ ଉତ୍ପାଦନ ଏବଂ ବିତରଣ ବ୍ୟବସ୍ଥା ପାଇଁ ଧନ୍ୟବାଦ, ଆମେ ଆମର ଗ୍ରାହକମାନଙ୍କୁ ସବୁଠାରୁ ପ୍ରତିଯୋଗୀ ମୂଲ୍ୟ ପ୍ରଦାନ କରିବାକୁ ପ୍ରତିଜ୍ଞା କରୁଛୁ |
Q4: ଉତ୍ପାଦଗୁଡିକ ଉଚ୍ଚ ଗୁଣବତ୍ତା କି?
ହଁ ବଲ୍କ ଉତ୍ପାଦନ ପୂର୍ବରୁ ସମସ୍ତ ଉତ୍ପାଦଗୁଡିକ ପରୀକ୍ଷା କରାଯିବ, ଏବଂ ପରିବହନ ପୂର୍ବରୁ ଯୋଗ୍ୟ ଉତ୍ପାଦଗୁଡିକ ନିଶ୍ଚିତ କରିବା ପାଇଁ ଆମେ ଭ physical ତିକ ଗୁଣ, ଆକୃତି ଏବଂ ସହନଶୀଳତା ଯାଞ୍ଚ କରିବୁ |
