Carbide wire drawing dies usually consist of a core and a sleeve

1.Carbide wire drawing core

The wire drawing core is usually cylindrical with a tapered hole inside to guide the metal wire through and reduce its diameter. The shape and size of the hole are carefully designed, including the entrance area, lubrication area, working area, sizing area and exit area.

The entrance area usually adopts a larger taper angle to facilitate the smooth entry of the wire into the core. The function of the lubrication area is to provide lubricant during the drawing process to reduce friction and wear. The working area is the main part of the core, and its taper angle and length determine the size of the drawing force and the degree of deformation of the wire. The sizing area is used to accurately control the diameter of the wire, and the exit area helps the wire to leave the core smoothly, reducing scratches and deformation at the exit.

2.Carbide wire drawing sleeve

The design of the sleeve needs to take into account factors such as the matching accuracy with the core, heat dissipation performance, and installation method. Generally speaking, the inner diameter of the die sleeve is slightly smaller than the outer diameter of the die core, and the die core is installed in the die sleeve by hot mounting, cold mounting or press mounting.

During the manufacturing process, the die sleeve needs to be precisely processed to ensure its dimensional accuracy and surface quality. At the same time, heat treatment and surface treatment are also required to improve the strength, hardness and wear resistance of the die sleeve.

The combination of carbide wire drawing die and die sleeve can achieve efficient and high-precision metal wire drawing. Through reasonable design and manufacturing, parameters such as drawing force, wire diameter, surface quality, etc. can be controlled to meet the needs of different industries and applications.

The models are as follows：

Selection of Carbide Wire Drawing Die Brands

1. Characteristics of the drawn material

Material hardness

2. Drawing process parameters

3. Die size and shape

Application

1. Used for making high temperature parts, wear parts, anti-shielding parts and corrosion-resistant parts.

2. Used in making hardware and standard stamping moulds.

3. Applicable for electronic industry, motor rotor, stator, LED lead frame, EI silicon sheet and so on.

4. Used for producing drawn mold, wear-resistant parts, stamping parts and automatic press with punch.

5. Used for stamping die, extrusion die, stamping molds.

6. Drawing many kinds of steel wire, aluminum wire, high carbon, MS wire etc

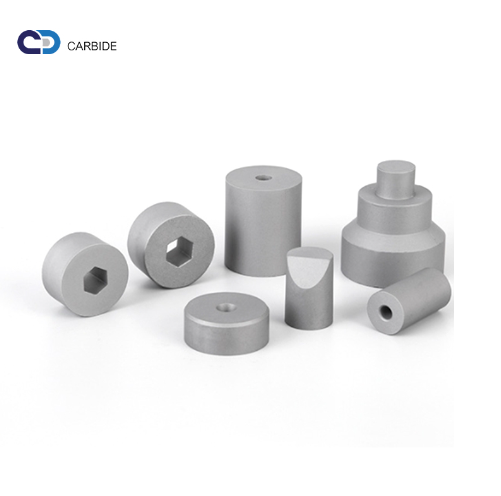

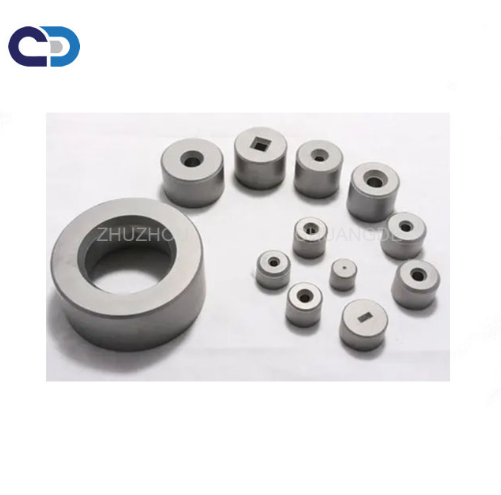

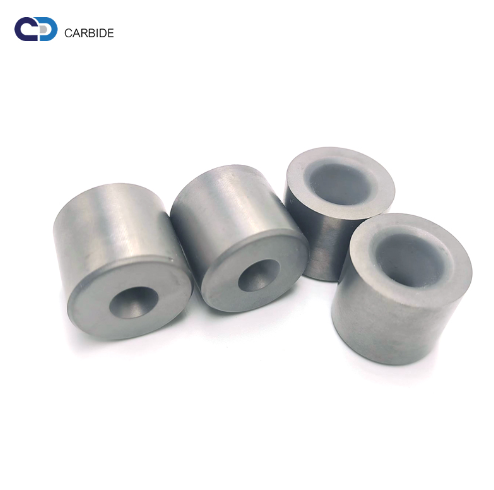

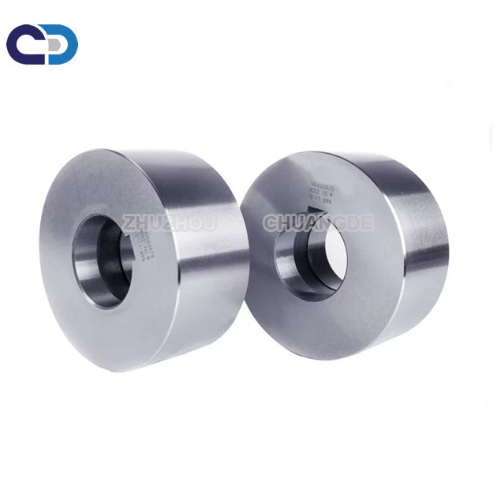

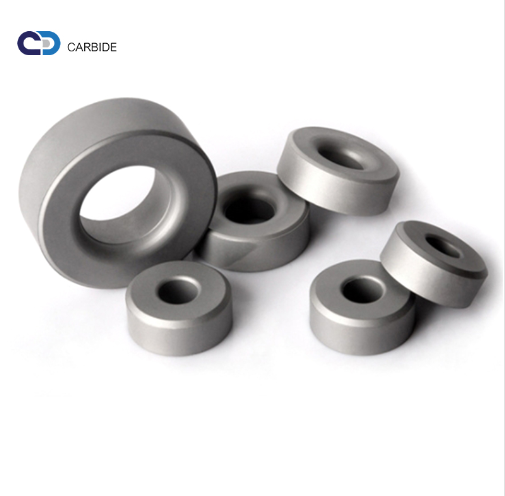

Our Product Show
